Apache Doris 5.0 Variant Across Internal and Open Lakehouse Tables

Apache Doris · Mingyu ChenSeptember 15, 2026

Preview: Apache Doris 5.0 multimodal lakehouse (4) | Scenario and solution

Apache Doris introduced Variant as a column type in version 2.1 for storing semi-structured data such as JSON. Users do not need to define fields before creating a table. During ingestion, Doris automatically splits the data into typed subcolumns. This retains the flexibility of JSON ingestion while providing analytical performance close to columnar storage. Apache Doris 5.0 will extend the Variant type from internal tables to open lake formats such as Iceberg and Paimon. The same VARIANT type, SQL syntax, and execution engine will process Variant data across these formats. Using an Agent trace data pipeline as an example, this article explains the need for this capability, the business problems it addresses, and when to use Variant in internal tables or data lakes.

1. Agent traces: The divide between Variant producers and consumers

JSON is a natural representation for an AI Agent execution trace. Protocols such as MCP and A2A use JSON-RPC, while tool-call parameters, model output, and span attributes for each step all contain nested structures. A complete trace can range from tens of KB to several MB and may be seven or eight levels deep. Tool lists and parameters also change as models evolve. Eight fields yesterday may become twelve today, so defining a stable schema in advance is often impossible.

Analytical systems have traditionally handled this type of data in three ways:

Approach	Advantage	Cost
Flatten data through ETL into a wide table	Fast queries	Every new upstream field requires changes to jobs and tables, followed by historical backfills
Store data as JSON strings or JSONB	Flexible ingestion	Every SQL query must parse the entire JSON document
Hard-code the structure with STRUCT or MAP	Better read performance	Still strongly typed and insufficiently flexible

The Variant type addresses the trade-off between flexibility and query performance. Apache Doris has provided the Variant column type since version 2.1 for storing semi-structured data such as JSON:

• When creating a table, users declare a single VARIANT column without defining its fields in advance.
• During ingestion, Doris automatically splits JSON into typed subcolumns, performs type inference and promotion, stores infrequently used fields in sparse columns, and allows indexes on subcolumns.
• Queries access values by path and read only the relevant subcolumns instead of parsing the entire JSON document.

Variant combines the ingestion flexibility of JSON with query performance close to columnar storage.

For Agent observability platforms, the recommended data model is:

• Store stable fields such as trace_id, tool_name, and latency as regular columns.
• Store inputs, outputs, and tool parameters in a VARIANT column, allowing upstream systems to add fields without altering the table.
• Use regular SQL with path-based value access for failure attribution, cost aggregation by tool, and effectiveness comparisons across model versions.
• Use inverted indexes for full-text searches over text in model outputs.

Later Apache Doris releases added Variant features such as Schema Template, secondary indexes at the subcolumn level, DOC mode for JSON documents hundreds of MB in size, and NestedGroup for searching nested arrays.

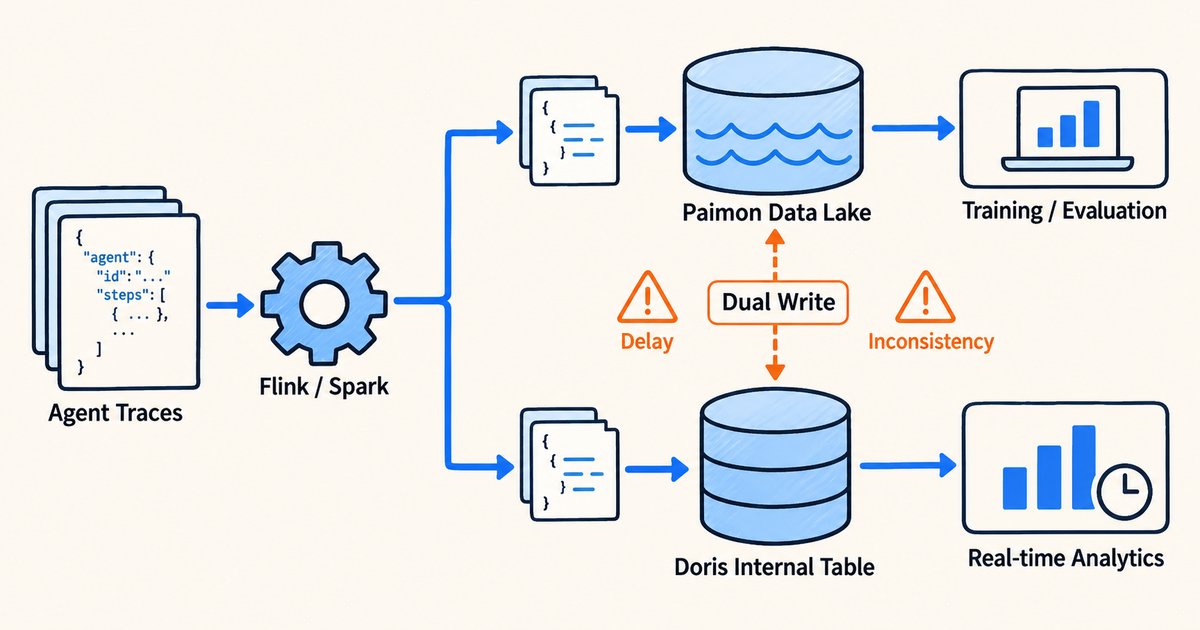

Changes in enterprise data architectures created another problem. Agent traces are produced by ingestion pipelines running on Flink or Spark. The data usually lands in Paimon first, then feeds training, evaluation, observability, and other workloads. Before version 5.0, Doris could process Variant data only in its own format. Consumers that wanted to analyze the data with Variant had to write and synchronize it to both internal tables and the lake. This duplicated storage and introduced synchronization delays and data inconsistencies.

Other Variant use cases have the same problem:

• Event tracking: Event properties can be stored in a VARIANT column, allowing product teams to add properties without altering the table. The same event data is also a shared enterprise asset that algorithm teams need for training features. This requires another copy in Iceberg.
• IoT telemetry: Device properties vary by model and firmware. A wide table would be excessively sparse, while a VARIANT column allows one SQL query to aggregate data across device models. Complete datasets must also be retained for years, and object storage with an open format is the only way to reduce storage costs significantly. Real-time alerts and historical analysis must therefore access different systems, which fragments the user experience.

Variant needs to follow the data. When data resides in the lake, Variant must be available there too, and the compute engine must support unified analysis of that Variant data.

2. Variant standardization: Bringing semi-structured data into the "one copy, multiple engines" model

Semi-structured data in a lake traditionally had two options: storage as strings or conversion to STRUCT through ETL. As this data became more widely used, the performance and operational costs of those approaches became harder to ignore. Variant began moving toward open standardization in 2025:

• In March 2025, Apache Parquet 2.11 defined a binary encoding for Variant and introduced the Shredding specification. Writers can split frequently accessed fields into typed columns while retaining the remaining data in a binary value, giving the file itself a columnar shape. The specification was finalized in August of the same year.
• In June 2025, the Apache Iceberg V3 specification was approved, making Variant a first-class table type. Apache Paimon has supported Variant and Shredding since version 1.4.
• Spark 4.0/4.1, Flink 2.1, and DuckDB subsequently added support, while Trino began offering experimental support. Snowflake and Databricks also announced general availability of their respective support for Variant in open formats in 2026.

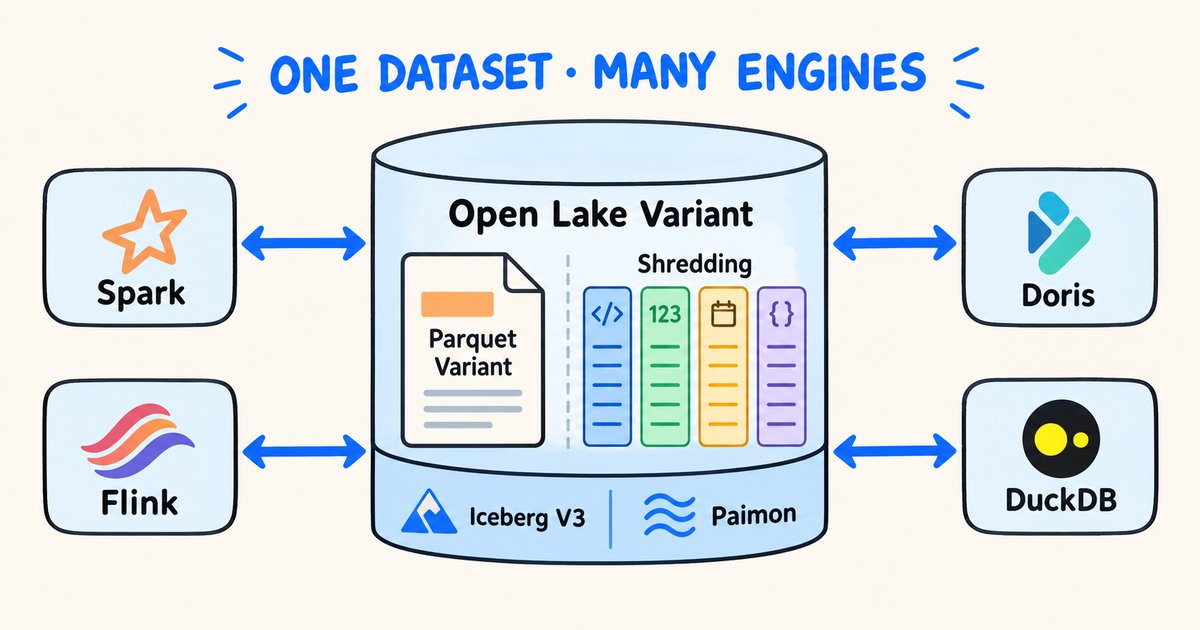

The open lakehouse model of "one copy of data shared by multiple engines" is extending to semi-structured data. With a standard format, any compliant engine can read and write Variant data in a lake. We therefore decided to extend the Variant processing capabilities available for internal tables to standard Variant formats.

An engine needs to solve three problems to use Variant effectively in a lake:

1. High-performance reads: The engine must be able to use the Shredded layout directly.
2. Variant production: An engine that can read but not write Variant cannot write its analytical results back to the open lakehouse for reuse.
3. Interoperability between internal and external formats: Variant should behave consistently across formats.

The following sections describe the unified Variant solution planned for Apache Doris 5.0. A later article about Variant internals will explain how Doris reads the Shredded layout.

3. Doris 5.0: One Variant type, one SQL syntax, one execution engine

Doris 5.0 will bring the Variant analytical capabilities of internal tables to open lake formats such as Iceberg and Paimon while keeping the user experience consistent across formats.

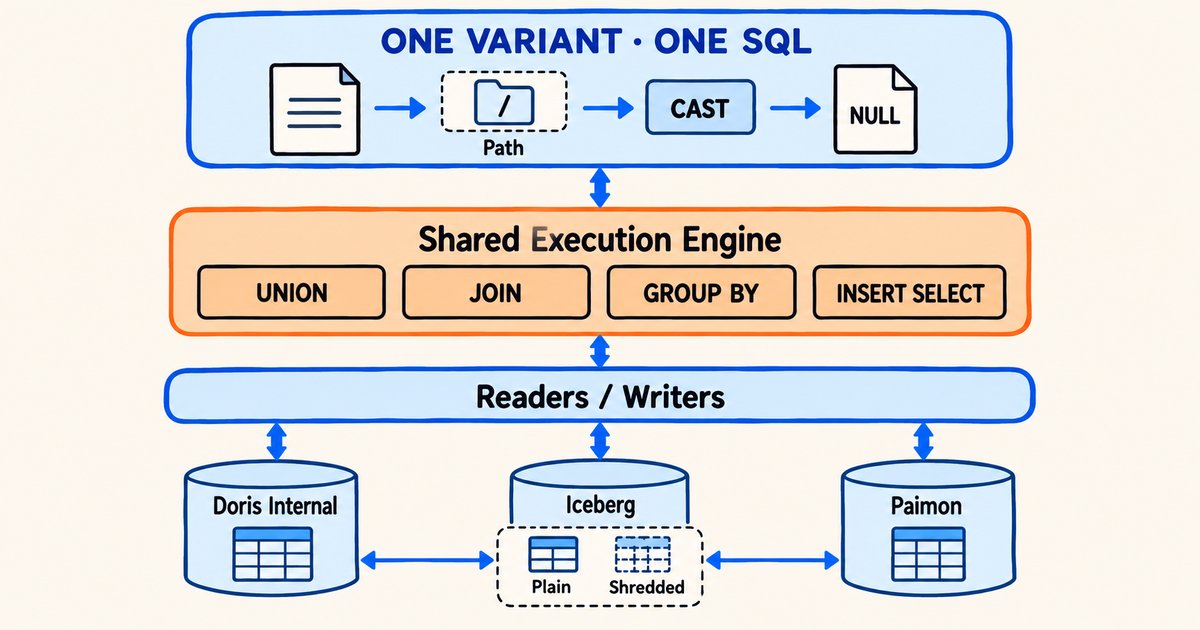

3.1 Three layers of unification

• Upper layer: Unified type and SQL syntax. Doris has one VARIANT type, with consistent SQL syntax and semantics for internal and external tables.

  • Unified path access syntax: payload['event']['type']
  • Unified conversion logic: use CAST for type conversion and VARIANT_TYPE to inspect the actual type
  • Unified constructor: use PARSE_TO_VARIANT to construct values from JSON text
  • Unified nesting: ARRAY, MAP, and STRUCT support nested VARIANT values
  • Unified NULL semantics: SQL NULL is distinguished from JSON null

• Middle layer: Unified execution operators. Data read from internal table files or Parquet files in the lake is converted into the execution engine's internal Variant column representation. The same operators then process the data, providing consistent behavior.

  • Variant values from internal and lake tables can appear in the same SQL statement and participate in UNION, JOIN, and other operations.
  • Internal and external tables can write to each other, for example, INSERT INTO LakeTable SELECT ... FROM DorisTable.
  • Variant can participate directly in GROUP BY and DISTINCT, with deduplication based on logical values rather than byte representations.

• Lower layer: Unified format access interfaces. Logical abstractions for Scan and Sink operators allow each format to implement only its own reader and writer. The Doris internal table format, for example, supports subcolumn splitting, inverted indexes, BloomFilters, real-time ingestion, and primary-key updates. Open lake formats support both Plain and Shredded layouts, with each format implementing its own write layout as described in Section 3.2. Format-specific differences remain at the lowest layer wherever possible, allowing most of the execution pipeline to be reused.

3.2 Capability matrix

The following Variant capabilities for data lakes are planned for Doris 5.0:

Area	Capability	Iceberg	Paimon
Read	File layout	Plain, Shredded, and mixed within the same table	Plain, Shredded, and mixed within the same table
Read	Nested Variant (STRUCT / ARRAY / MAP)	Supported	Supported
Read	Path extraction, CAST, predicate filtering, and page-level pruning	Supported	Supported
Read	Existing lake-format capabilities	Time Travel, Deletion Vector, and schema evolution	Append tables and primary-key tables
Read	Asynchronous materialized views built on lake Variant tables	Supported	Supported
Write	INSERT INTO / INSERT OVERWRITE / INSERT ... SELECT	Supported (format-version 3 + Parquet)	Supported (Append tables, primary-key tables, and partitioned and bucketed tables)
Write	Row-level UPDATE / DELETE / MERGE INTO	Supported	Supported
Write	Nested Variant writes	Supported	Supported
Write	On-disk layout	Plain (see note below)	Written according to the Shredding Schema, specified explicitly or inferred automatically
Interoperability	Spark writes → Doris reads; Doris writes → Spark reads	Verified	Verified
Interoperability	Internal table ↔ lake table INSERT ... SELECT	Bidirectional	Bidirectional
Interoperability	Query internal and lake tables in the same SQL statement	Supported	Supported

Iceberg currently writes only the Plain layout. Reading the Shredded layout is fully supported. Shredded writes are planned for a later iteration, as described in the conclusion.

Availability: The lake Variant capabilities and SQL workflow below are planned for Doris 5.0. They describe the intended behavior rather than a currently released feature.

3.3 Example: Unified lakehouse analysis of Agent traces

The following example uses an Agent observability platform.

First, Flink writes trace data to Paimon. Stable fields are stored as regular columns, while variable data is stored in a VARIANT column.

-- Flink writes the paimon.obs.agent_traces trace table:
-- (trace_id, tool_name, latency_ms, dt, payload VARIANT)

-- 1. Analyze failures in lake tables using path extraction, type conversion, and predicates
SELECT tool_name, COUNT(*) AS failures
FROM paimon.obs.agent_traces
WHERE CAST(payload['result']['status'] AS STRING) = 'error'
  AND CAST(payload['model']['version'] AS STRING) = 'v2'
GROUP BY tool_name;

-- 2. Load hot data into internal tables for real-time alerts and full-text search
INSERT INTO internal.obs.agent_traces_hot
SELECT * FROM paimon.obs.agent_traces WHERE dt = CURRENT_DATE();

-- 3. Write derived results and the VARIANT column back to the lake for other engines
INSERT INTO paimon.obs.failed_traces
SELECT trace_id, tool_name, payload
FROM internal.obs.agent_traces_hot
WHERE CAST(payload['result']['status'] AS STRING) = 'error';

In this pipeline:

• The lake table and internal table use the same VARIANT type, so they do not require separate schemas.
• Internal and lake tables use the same SQL query syntax.
• Standard SQL INSERT ... SELECT statements handle data synchronization and write-back.

The same pipeline also works for event tracking and IoT:

• Event tracking: Events are shared as Iceberg Variant data. Spark creates features, while Doris produces reports. Both use one copy of the data and one schema-evolution process.
• IoT: The complete dataset remains in the lake for long-term retention. Hot data enters internal tables through INSERT ... SELECT for real-time alerting, while hot and cold data use the same data model.

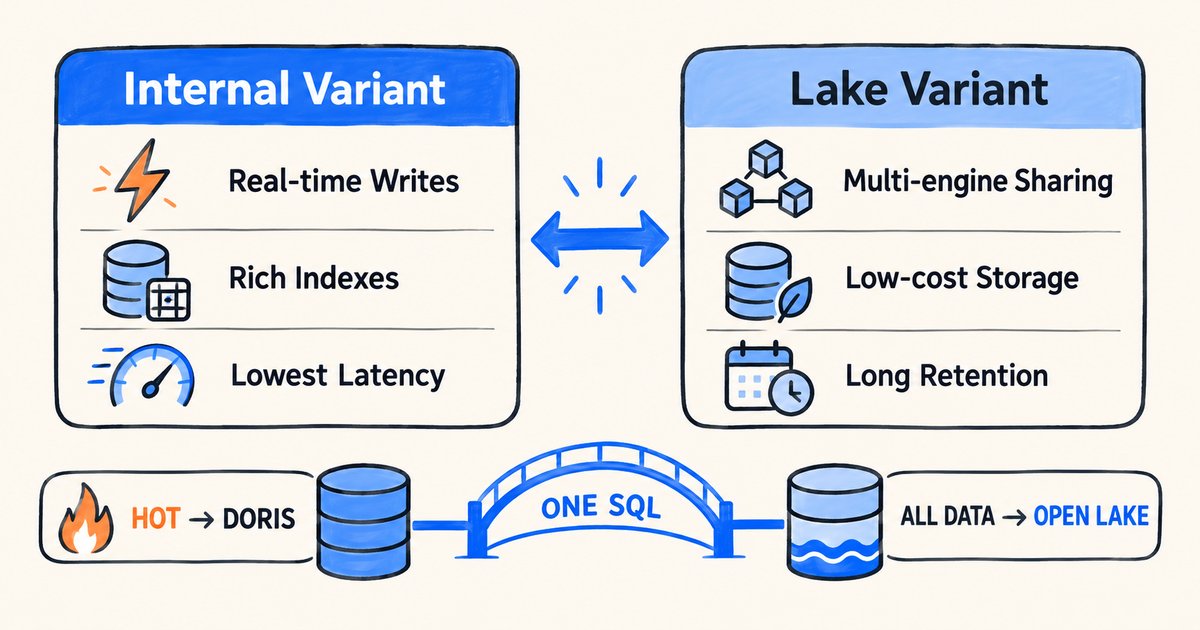

4. Recommendations for choosing a Variant format

The following comparison of Variant in internal and external tables can help users select a format.

Dimension	Variant in internal tables	Variant in the lake
Storage and format	Doris proprietary format	Parquet Variant in Iceberg V3 or Paimon
Engines that can read and write	Doris	✅ Any standards-compliant engine
Query performance	✅ Best performance through subcolumns and indexes	Depends on the Shredding strategy; readers access subcolumns directly
Indexing and search	✅ Inverted indexes, BloomFilter, DOC mode, and NestedGroup	Parquet statistics with page-level pruning
Schema control	✅ Schema Template, with Doris splitting subcolumns	The writer's Shredding strategy
Ingestion latency and updates	✅ Real-time ingestion and primary-key updates	Batch or micro-batch commits; Iceberg row-level updates
Cost	Integrated or decoupled storage and compute	✅ Object storage with low per-unit storage cost

Variant in internal tables provides more features and better read and write performance. Variant in the lake allows multiple engines to access the same data and offers lower storage costs.

The recommendations are:

Scenario	Recommendation
Data is primarily produced and consumed within Doris; workloads require subsecond real-time ingestion and updates, full-text search, or high-concurrency point lookups and filtering	Variant in internal tables
Data is an enterprise asset shared by multiple engines; ingestion is primarily batch or micro-batch; long-term retention and storage costs matter; Spark or Flink production pipelines already exist	Variant in the lake
Both scenarios apply	Put hot data in internal tables and retain the complete dataset in the lake; query both with one SQL statement; accelerate lake Variant tables with asynchronous materialized views; write processing results back to the lake

5. Conclusion: Variant follows the data

Doris introduced Variant for internal tables in version 2.1 and plans to support open lake formats in version 5.0. Future work will strengthen Shredded writes for Variant and improve the performance of reading Variant from data lakes. These changes are intended to meet enterprise requirements for semi-structured data analysis and cover more use cases.

The next article, Apache Doris Variant in the Lake: How Shredding Works and Performance Benchmarks, will examine the implementation details of Variant and compare the performance characteristics of different formats. It will explain in more detail how Variant works and how to use it.
