Amazon RDS MySQL

Overview

Before using Doris continuous load to synchronize data from Amazon RDS MySQL, you need to ensure that the RDS instance has Binlog enabled and properly configured. This guide walks you through all prerequisite configuration steps.

Step 1: Check Current Configuration

First, check whether Binlog is enabled and the format is correct by connecting to the RDS instance and running:

-- Check if binlog is enabled
SHOW VARIABLES LIKE 'log_bin';

-- Check binlog format
SHOW VARIABLES LIKE 'binlog_format';

-- Check binlog row image
SHOW VARIABLES LIKE 'binlog_row_image';

If log_bin is ON, binlog_format is ROW, and binlog_row_image is FULL, no additional configuration is needed. You can skip to Step 4: Create Sync User.

Otherwise, continue with the following steps.

Step 2: Configure Parameter Group

1. Log in to the AWS RDS Console.
2. In the left navigation, select Parameter groups, then click Create parameter group.
3. Select the appropriate MySQL version family and create a new parameter group.

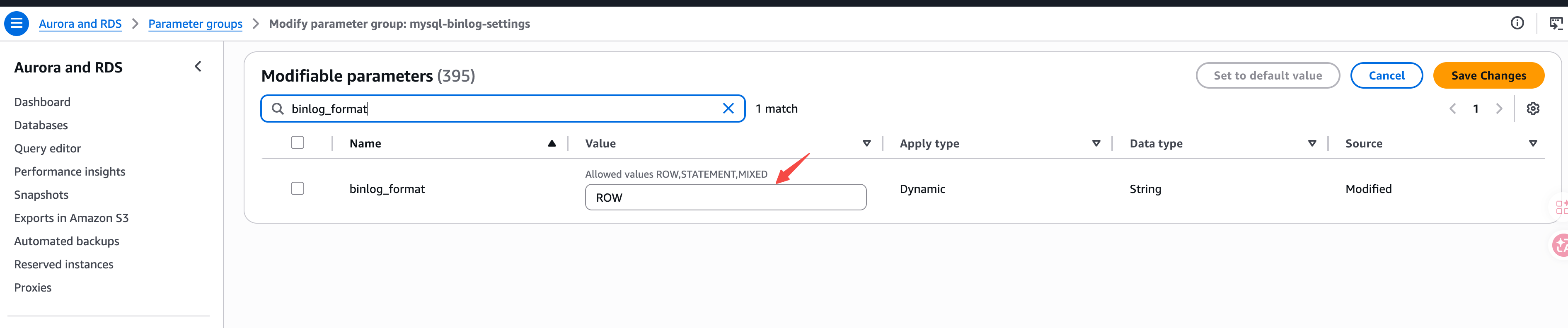

4. Edit the parameter group, search for binlog_format, and set the value to ROW:

5. Also search for binlog_row_image and set the value to FULL.
6. Click Save Changes.

Step 3: Apply Parameter Group and Restart

1. In the RDS console, select the target instance and click Modify.
2. Under DB parameter group, select the newly created parameter group.
3. Select Apply immediately to apply changes.
4. Restart the RDS instance for the changes to take effect.

caution

Modifying the binlog_format parameter requires restarting the RDS instance to take effect. Please perform this during off-peak hours.

Step 4: Create Sync User

Create a dedicated user for Doris continuous load:

CREATE USER 'doris_sync'@'%' IDENTIFIED BY '<password>';

Grant the required permissions:

GRANT SELECT, REPLICATION SLAVE, REPLICATION CLIENT ON *.* TO 'doris_sync'@'%';

Step 5: Configure Binlog Retention

By default, Amazon RDS MySQL cleans up binary logs as soon as possible. It is recommended to set the Binlog retention time to at least 72 hours to ensure binary log files are still available for replication in failure scenarios.

Use the mysql.rds_set_configuration stored procedure to set the retention time:

CALL mysql.rds_set_configuration('binlog retention hours', 72);

caution

If this configuration is not set, or is set to a too-short interval, it may cause gaps in the binary logs, which could affect Doris's ability to recover replication.
