Large-scale Performance Benchmark

This page summarizes large-scale benchmark results in both single-node and distributed deployments. The purpose of these tests is to show query behavior at different data scales, and to illustrate how Doris extends vector query capacity from single-node workloads to larger distributed deployments.

Test Matrix

• Single node: FE/BE separated, BE on one 16C64GB machine.
• Distributed: 3 BE nodes, each 16C64GB.
• Workloads:
  • Performance768D10M
  • Performance1536D5M
  • Performance768D100M

Single-node Benchmark (16C64GB)

The single-node results provide a baseline for ANN query performance on medium-to-large datasets.

Import Performance

Item	Performance768D10M	Performance1536D5M
Dimension	768	1536
metric_type	inner_product	inner_product
Rows	10M	5M
Batch config	NUM_PER_BATCH=500000 --stream-load-rows-per-batch 500000	NUM_PER_BATCH=250000 --stream-load-rows-per-batch 250000
Import time	76m41s	41m
show data all	56.498 GB (25.354 GB + 31.145 GB)	55.223 GB (25.346 GB + 29.878 GB)

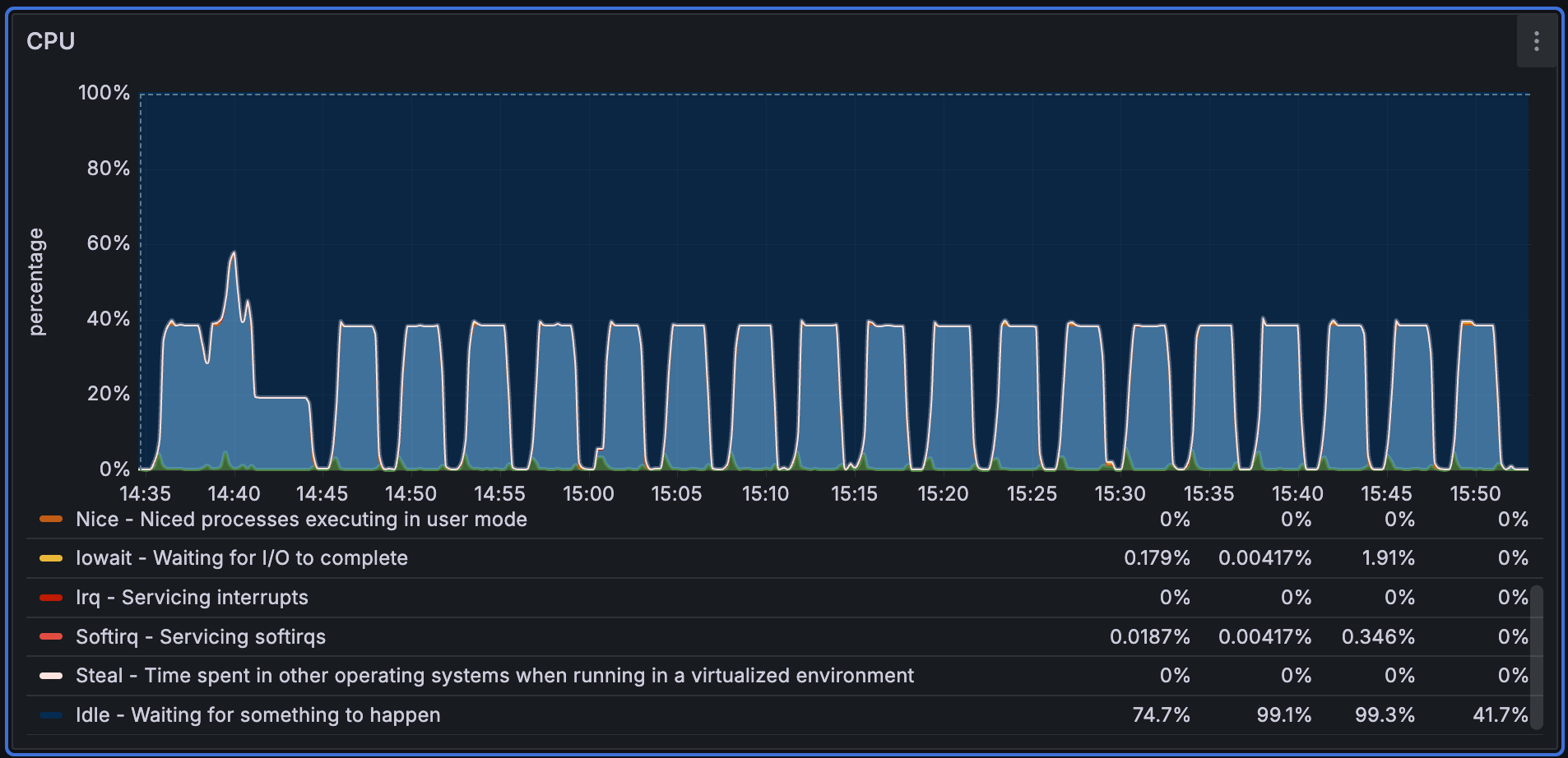

CPU utilization during import for Performance768D10M is shown below. The chart indicates that CPU usage remains relatively stable throughout ingestion.

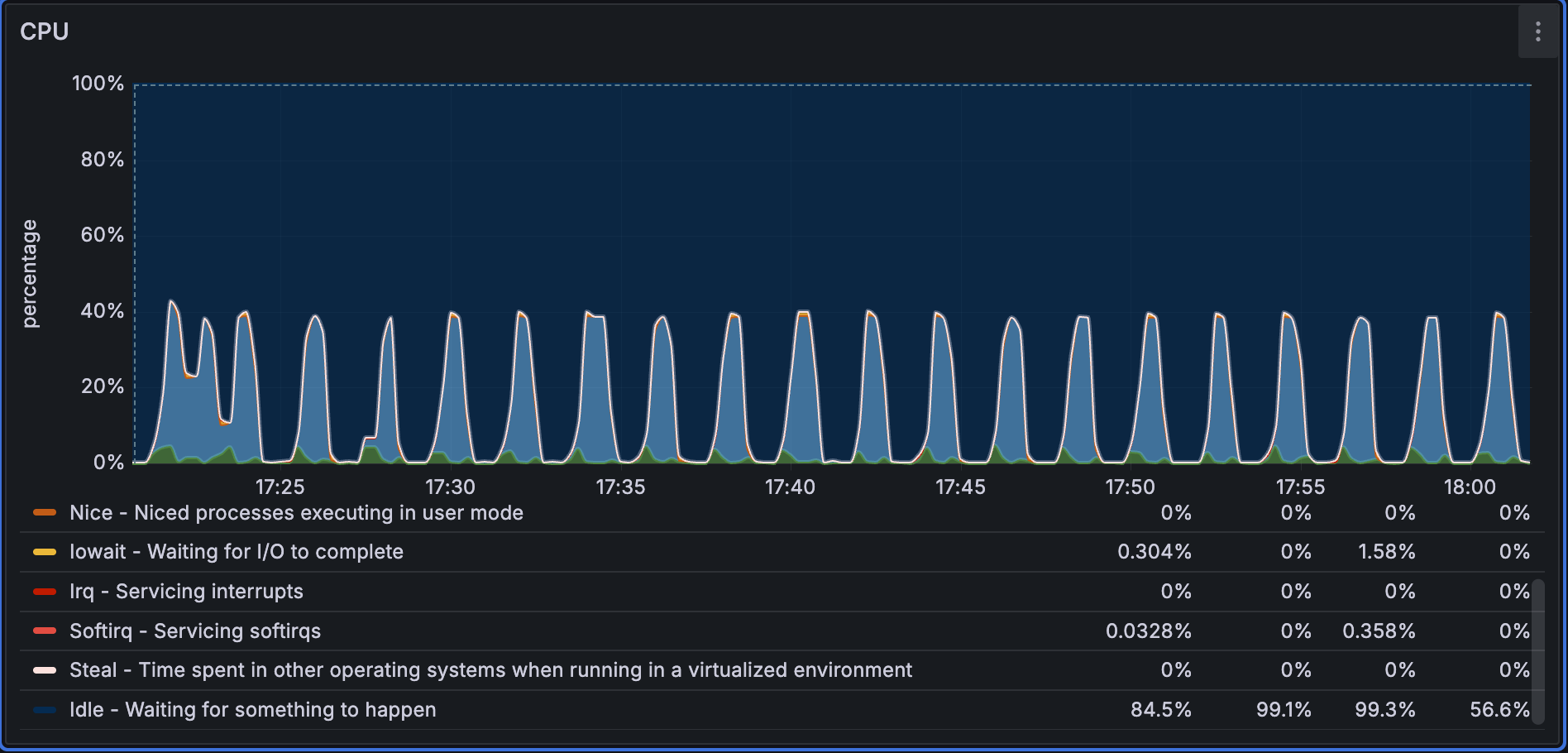

For Performance1536D5M, the dataset is smaller and the batch size is also smaller, so CPU utilization fluctuates more frequently during ingestion.

Query Performance

For the two single-node workloads, Doris reaches hundreds of QPS while maintaining high recall and low latency.

Summary

Dataset	BestQPS	Recall@100
Performance768D10M	481.9356	0.9207
Performance1536D5M	414.7342	0.9677

Performance768D10M (inner_product, 10M rows)

Concurrency	QPS	P95 Latency	P99 Latency	Avg Latency
10	116.2000	0.0932	0.0933	0.0861
40	455.9485	0.1102	0.1225	0.0877
80	481.9356	0.2331	0.2674	0.1658

Performance1536D5M (inner_product, 5M rows)

Concurrency	QPS	P95 Latency	P99 Latency	Avg Latency
10	144.3221	0.0764	0.0800	0.0693
40	401.9732	0.1271	0.1404	0.0994
80	414.7342	0.2772	0.3222	0.1925

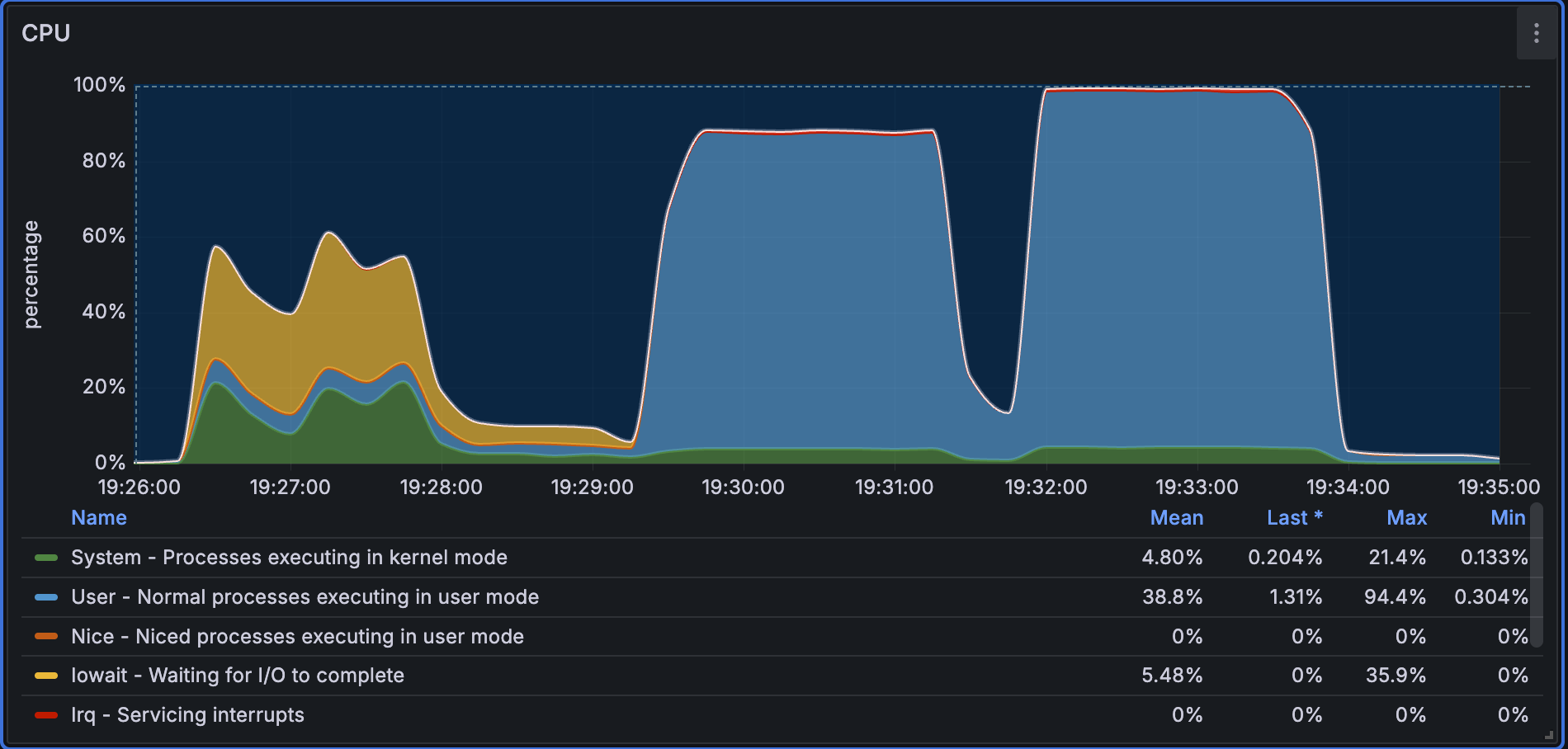

In the single-node query test, the cold-query phase needs to load the full index into memory, so CPU utilization is relatively low while the system waits for IO. During the warm-query phase, CPU utilization increases significantly and approaches 100%.

Distributed Benchmark (3 x 16C64GB)

The distributed test focuses on a larger dataset that exceeds the practical memory envelope of a single 16C64GB node.

For 3BE testing, Performance768D100M was selected. Since single-node memory is limited to 64GB, vector quantization is enabled to reduce memory usage. This test is intended to show how Doris sustains vector query capability at 100M scale through multi-BE deployment, rather than to provide a direct one-to-one comparison with the smaller single-node cases.

Import Performance

Item	Value
Dataset	Performance768D100M
Rows	100M
Dimension	768
Batch config	NUM_PER_BATCH=500000 --stream-load-rows-per-batch 500000
Index properties	"dim"="768", "index_type"="hnsw", "metric_type"="l2_distance", "pq_m"="384", "pq_nbits"="8", "quantizer"="pq"
Build index time	4h5min
show data all	198.809 GB (137.259 GB + 61.550 GB)

Post-build distribution:

• 3 buckets
• 34 rowsets per bucket, each rowset about 1.99 GB
• 6 segments per rowset

Query Performance

Summary

Metric	Value
BestQPS	77.6247
Recall@100	0.9294

Detailed results (l2_distance, 100M rows)

Concurrency	QPS	P95 Latency	P99 Latency	Avg Latency
10	46.5836	0.2628	0.2791	0.2145
20	75.3579	0.3251	0.3541	0.2651
30	77.6247	0.5222	0.5766	0.3860
40	76.6313	0.7089	0.7854	0.5212

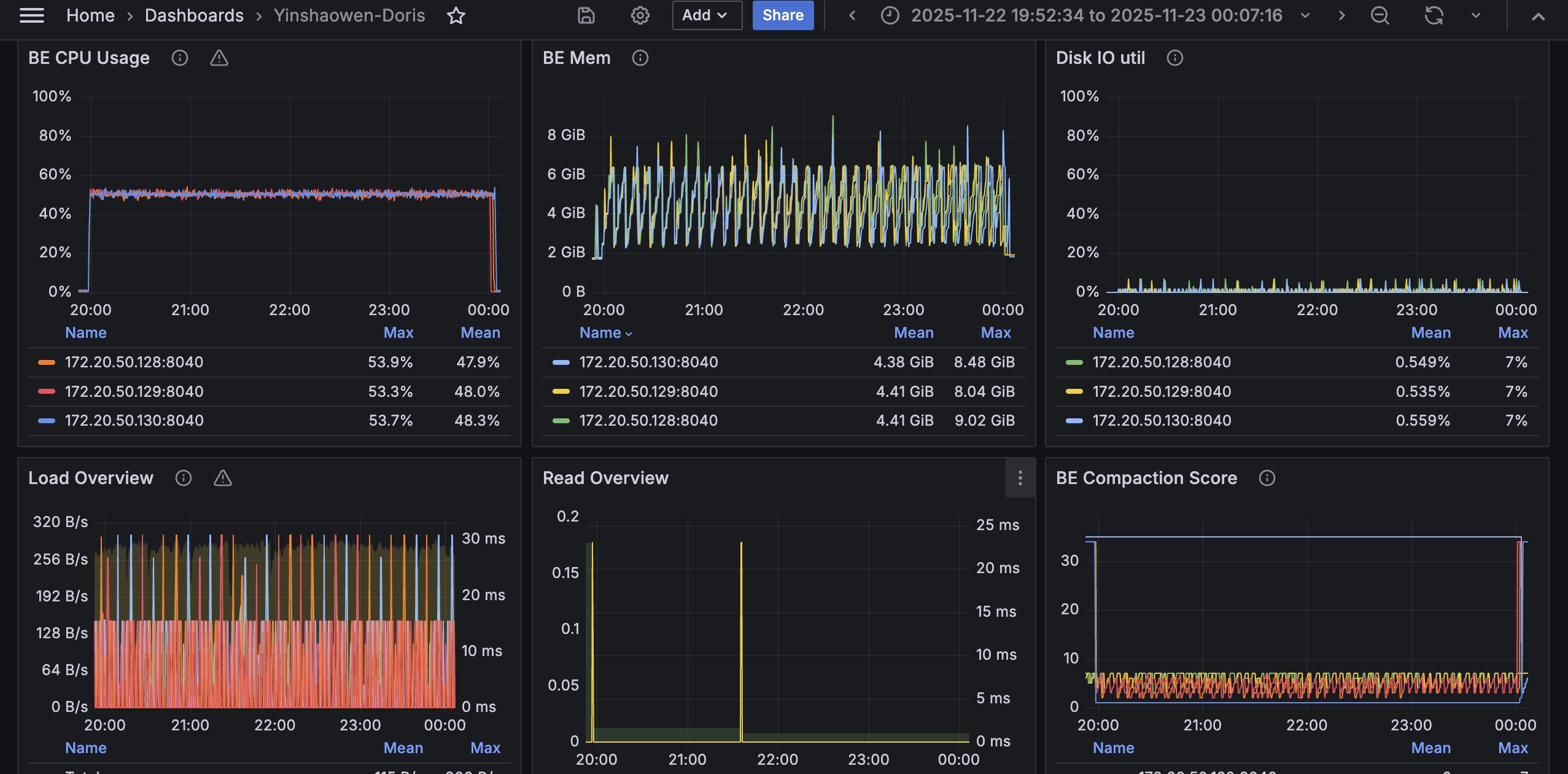

During index build, CPU utilization stays around 50%, indicating that the build process does not saturate CPU resources for an extended period.

The chart below shows CPU utilization during the query phase. CPU usage stays at a relatively high level across the nodes, indicating that the distributed query workload makes good use of available compute resources.

Summary

• On tens of millions of vectors, Doris provides strong ANN query performance on a single node, with hundreds of QPS and high recall.
• On a 100M-vector dataset, Doris continues to provide online vector query capability through multi-BE deployment.
• Because the test groups use different dataset sizes, distance metrics, and index settings, the results should be read as scale benchmarks rather than direct one-to-one performance comparisons.

Notes

• Metric types differ between the two test groups (inner_product vs l2_distance), so absolute values should not be compared directly.
• The single-node Performance768D10M result at concurrency = 10 has been adjusted to exclude cold-query impact.

Reproduction

Single-node:

export NUM_PER_BATCH=500000
vectordbbench doris ... --case-type Performance768D10M --stream-load-rows-per-batch 500000

export NUM_PER_BATCH=250000
vectordbbench doris ... --case-type Performance1536D5M --stream-load-rows-per-batch 250000

Distributed 3BE:

export NUM_PER_BATCH=500000
vectordbbench doris ... --case-type Performance768D100M --stream-load-rows-per-batch 500000
