Alerting and Notification

Because DOG Stack integrates Grafana, you can create and manage alerts directly in Grafana. This article introduces the most common alerting operations; for more advanced features, refer to the Grafana Alerting documentation.

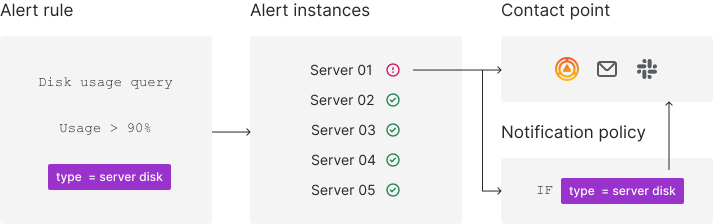

As shown in the figure, the core mechanism of Grafana Alert is:

1. The user defines alert rules, including the underlying query and the trigger condition.
2. The system periodically runs the rule's query and evaluates the trigger condition.
3. If the trigger condition is met, an alert instance is generated.
4. The alert is then dispatched — directly to a contact point or routed flexibly through notification policies.

A typical alert-rule creation and management flow looks like this:

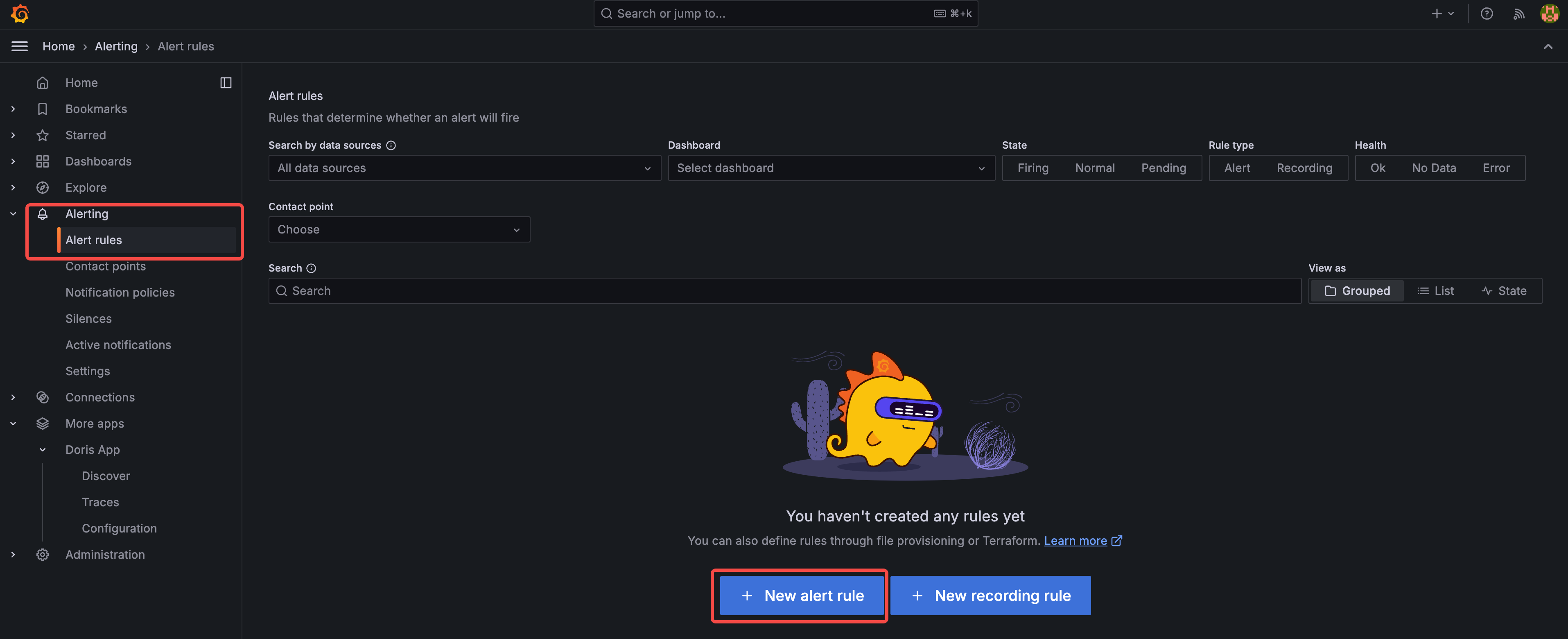

1. Open Grafana Alerting → Alert rules, and click "Create alert"

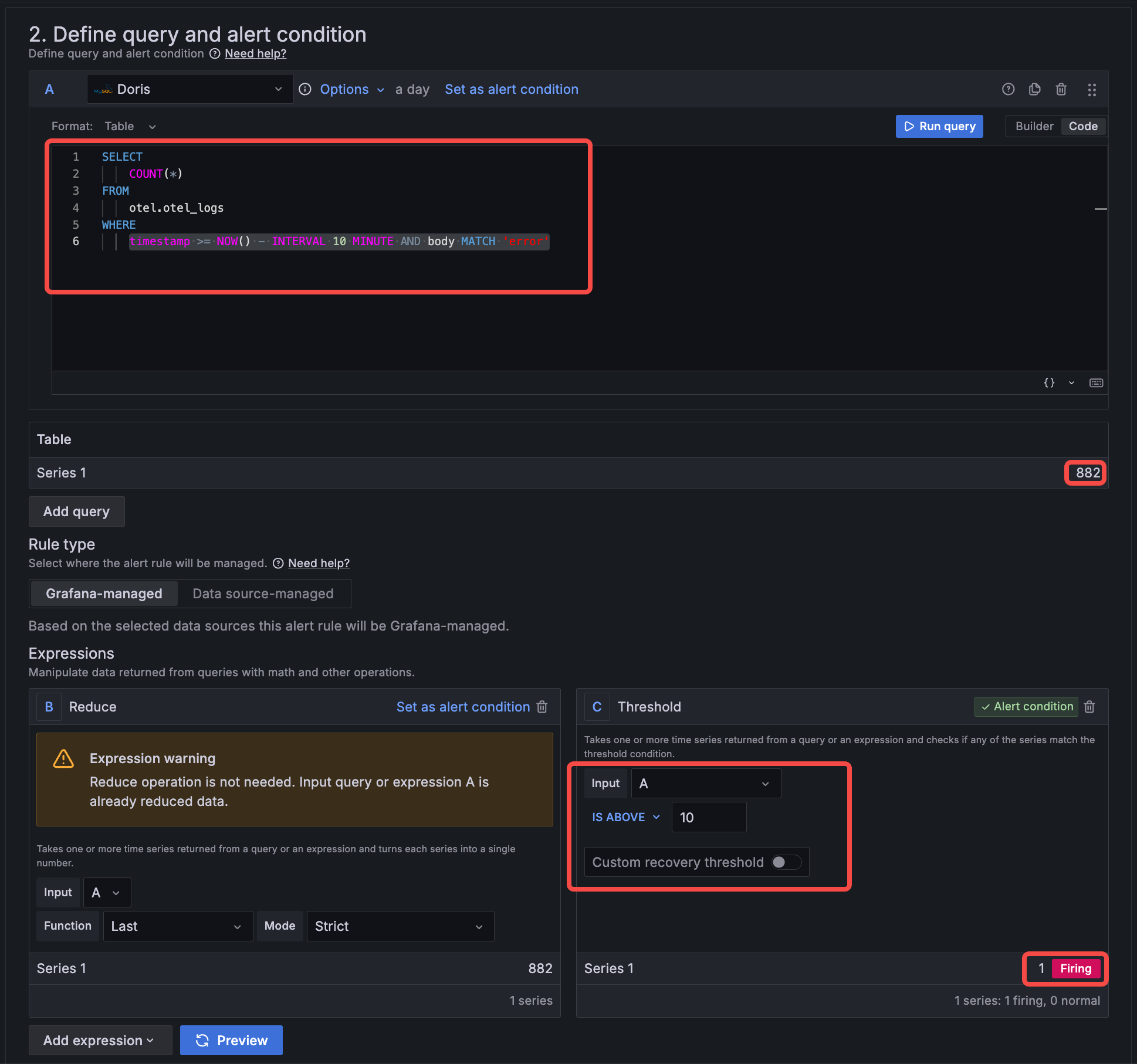

2. Define the query and the trigger condition

First choose a data source such as Doris. In Builder mode you can build a simple query by clicking through a visual interface; in Code mode you can write SQL for more complex queries. In this example, Code mode is used to query the number of rows in otel.otel_logs over the last 10 minutes whose body field matches the keyword error.

Next, in the Expression section, choose how to further aggregate the query result (optional) and set the threshold that triggers the alert. In this example the threshold is set to "result > 10", and no additional aggregation is applied.

Finally, click Preview to preview the query result and whether the alert would fire. Here the query returns 882, which exceeds the threshold of 10, so it shows the status 1 Firing.

For more details, see the Grafana docs.

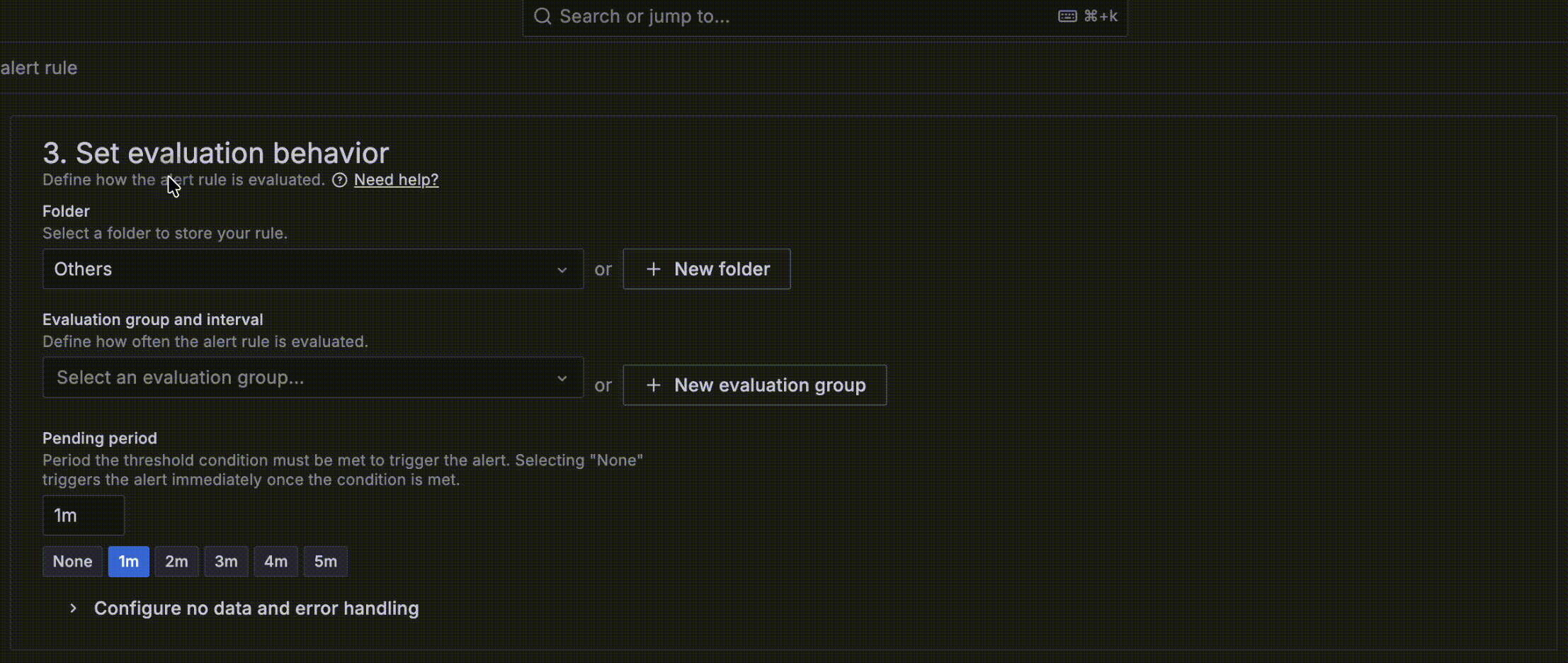

3. Configure the evaluation interval and organization

First choose a folder to organize alerts, then set the alert's evaluation interval, and finally choose the Pending duration. The example creates an evaluation group that runs every minute and chooses Pending = None — meaning the alert moves to Firing state immediately when the condition is met, rather than after persisting for some time (e.g. 1 minute).

For more details, see the Grafana docs.

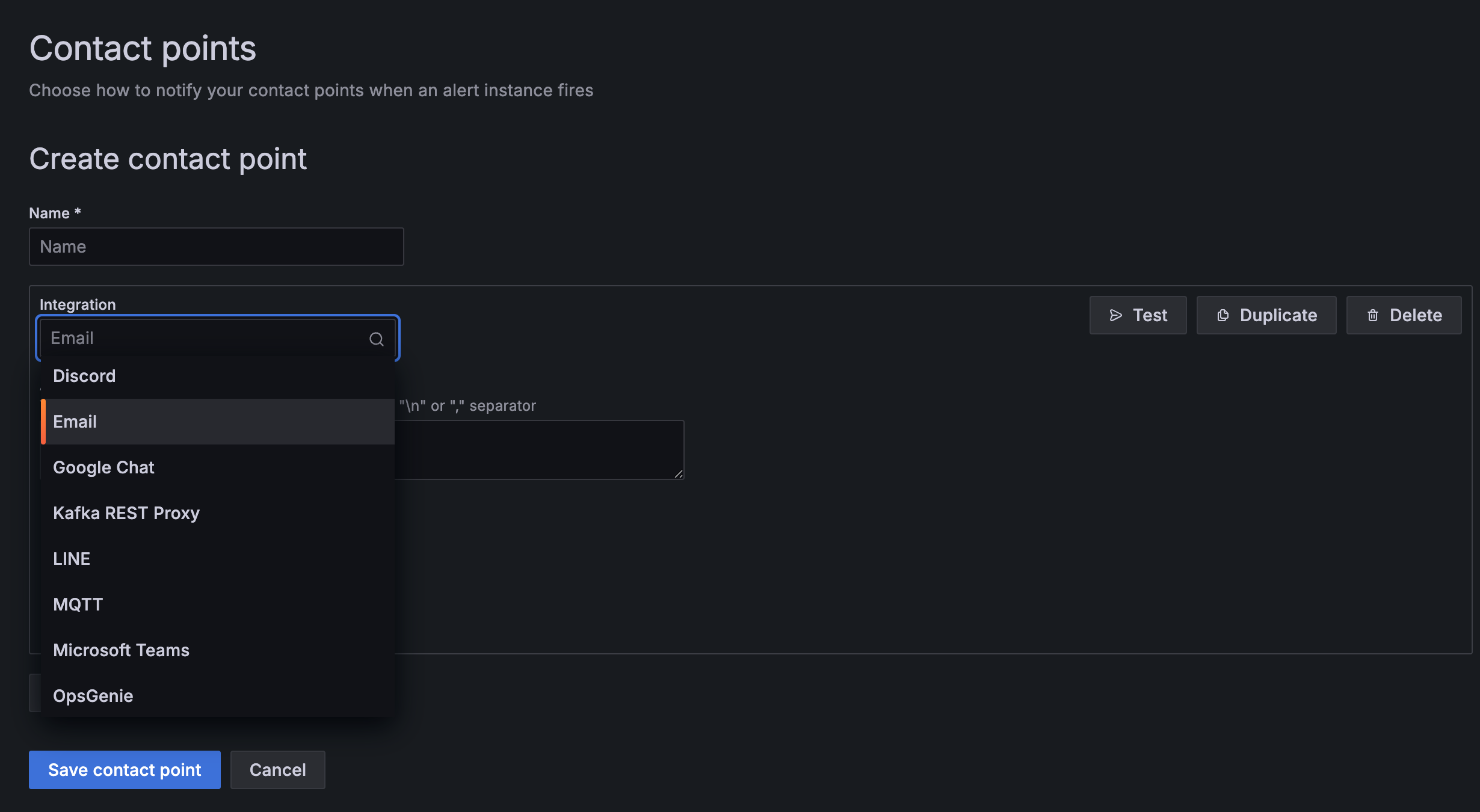

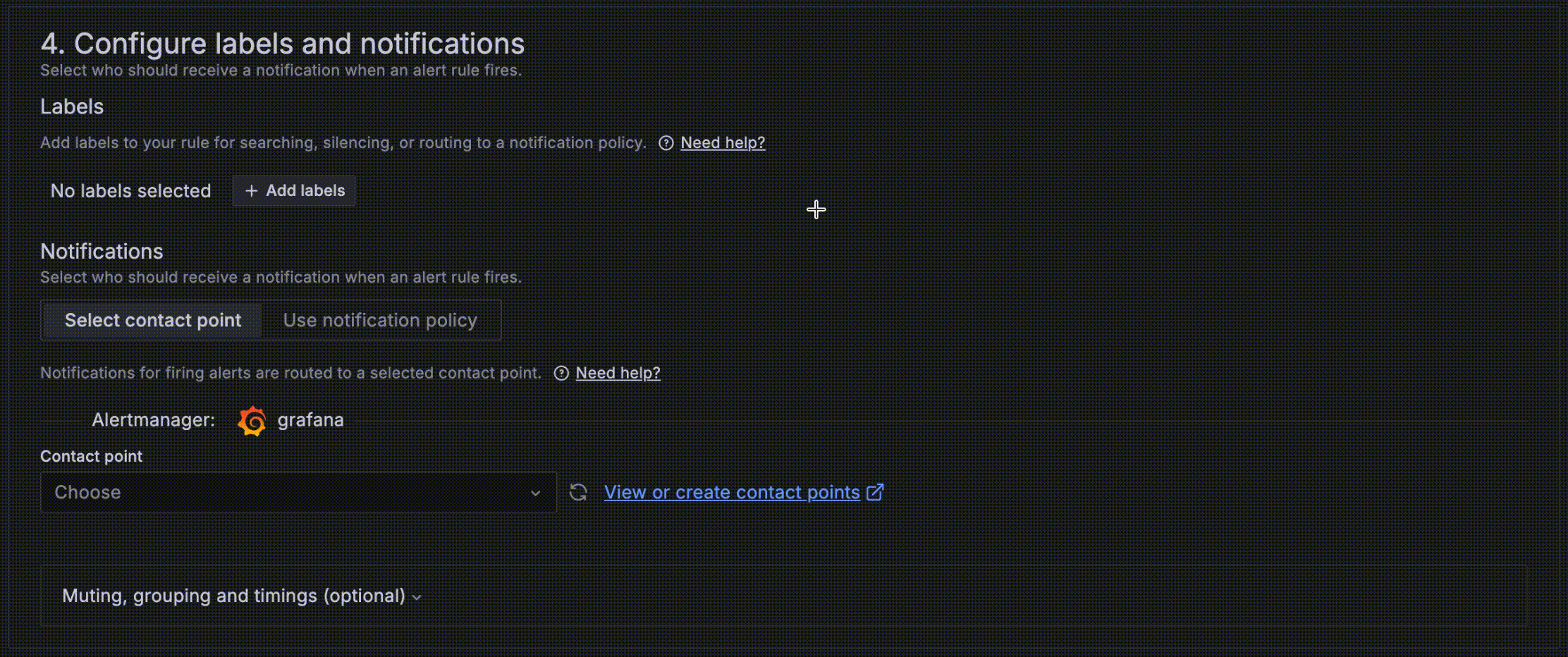

4. Configure the notification channel

Grafana supports many notification channels — Email, Slack, Discord, PagerDuty, Webhook, and more. You can pick an existing contact point or create your own, and you can also configure flexible notification policies that route alerts based on labels.

For more details, see the Grafana docs.

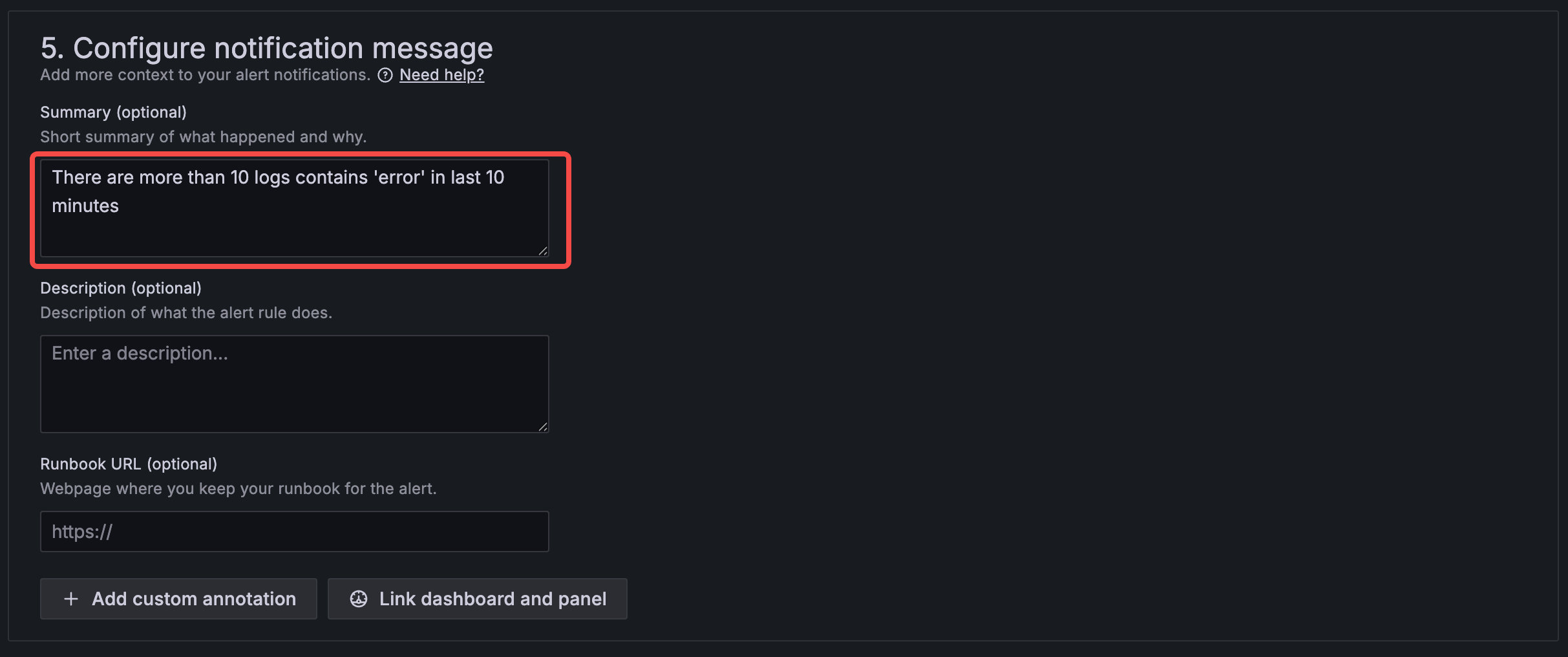

5. Configure the notification message

You can customize the notification content — including a summary, description, and a runbook URL that guides handling — so that recipients can grasp what happened more quickly.

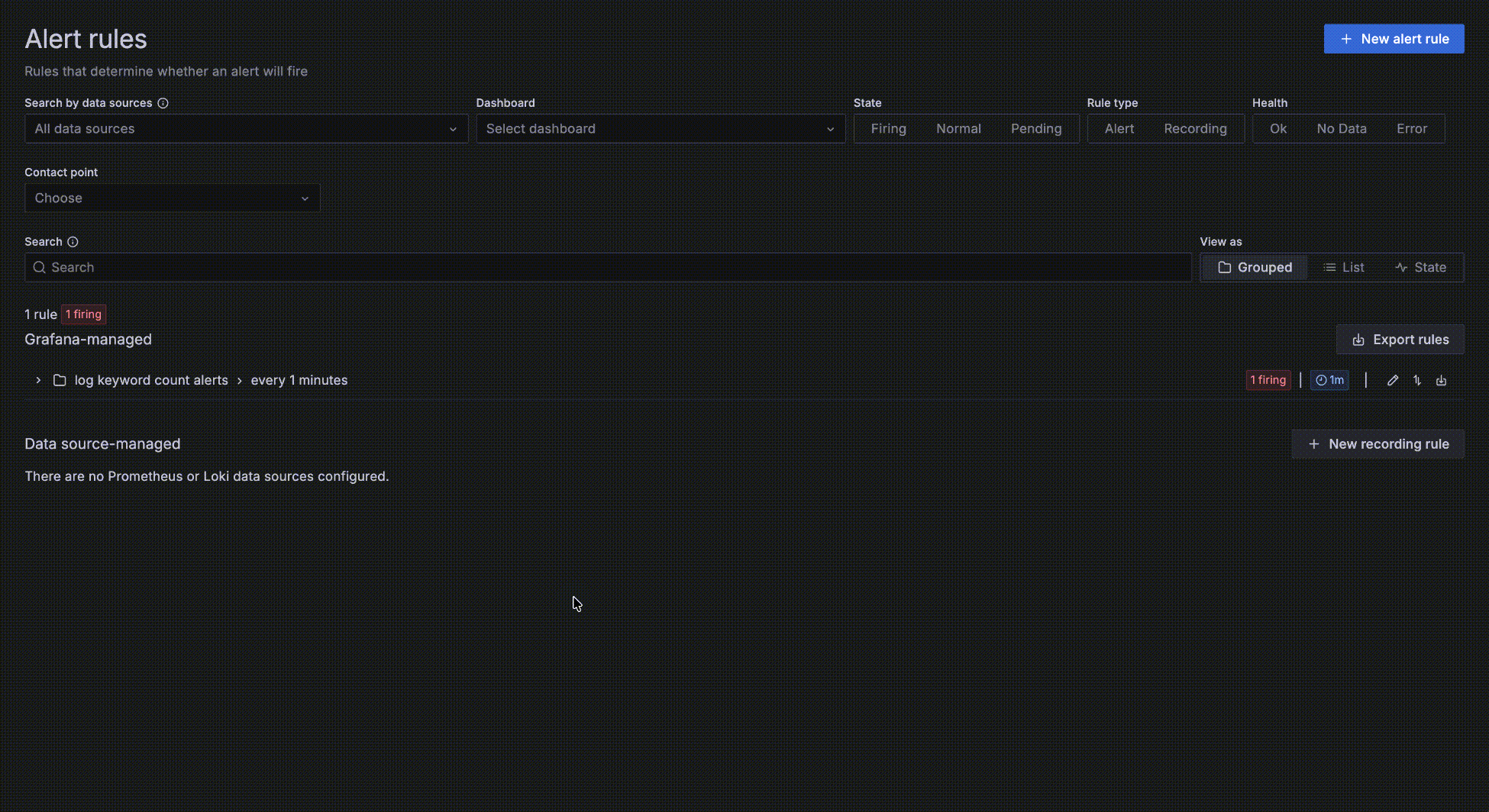

6. Alert management

After alert rules are created, you can manage them — pause an alert, silence notifications for a while, modify the rule, change the notification channel, and so on.

For more details, see the Grafana docs.
