Distributed Trace Analysis

Trace is one of the three pillars of observability data. It tracks the full execution of a request and consists of spans — execution intervals within each service — and their call relationships. Traces are essential for analyzing request performance and anomalies in distributed systems.

You can analyze traces on the Traces page: locate the traces of interest (for example, long-running ones), then visualize a specific trace and drill into its spans.

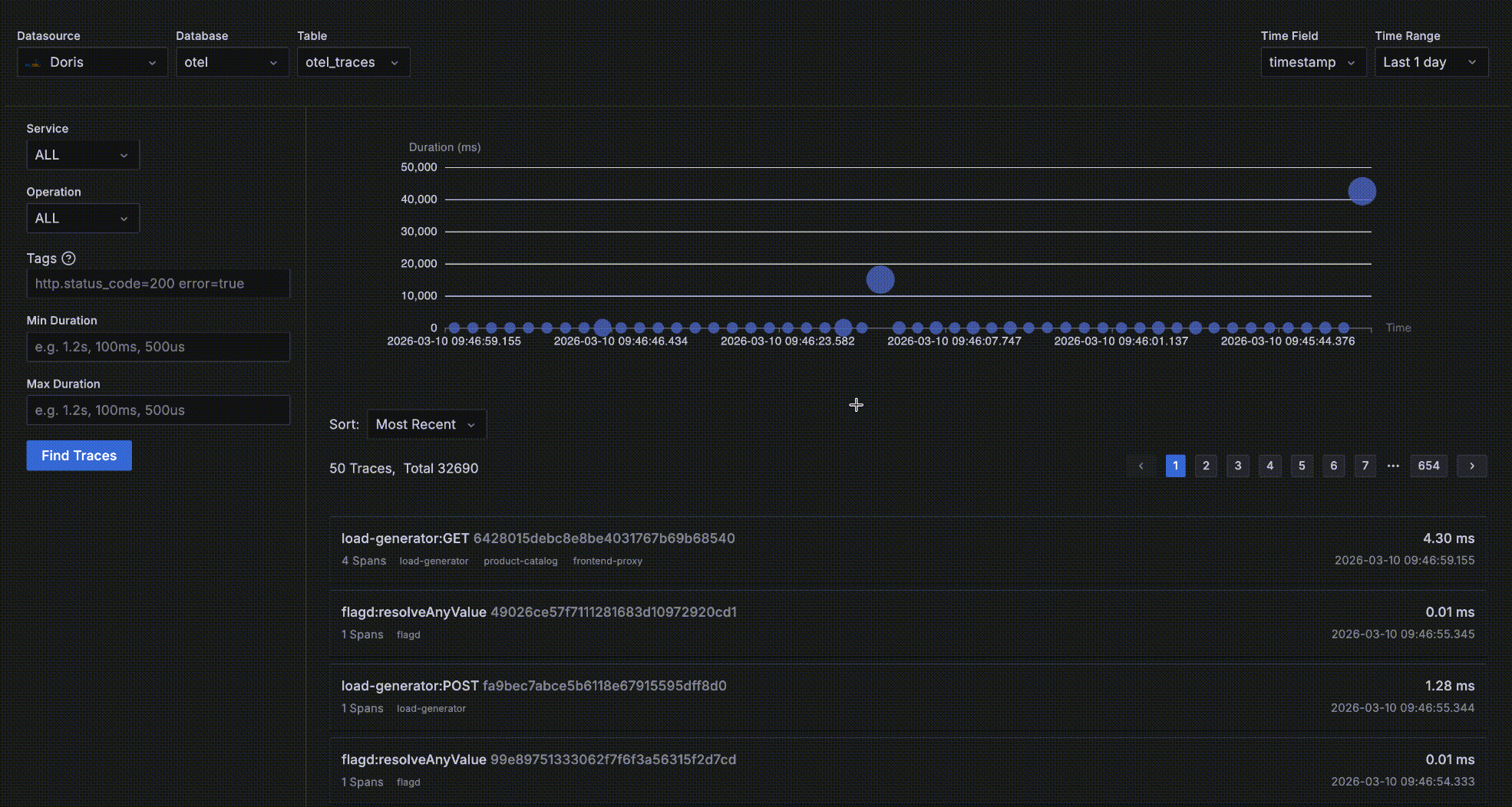

As shown below, the Traces page consists of four areas:

1. Data selection area (top): Choose the trace data source (Datasource, Database, Table), time field, and time range.
2. Filter area (left): Filter traces by Service, Operation, Tags, and Duration.
3. Trace distribution area (top right): A scatter plot of matching traces — X-axis is trace start time, Y-axis is trace duration, and bubble size is the number of spans in the trace. The scatter plot helps you quickly spot long-running or large-span "big" traces. Click a bubble to view that trace's details as a waterfall chart.
4. Trace list area (bottom right): A list of matching traces showing service, operation, trace_id, trace duration, span count, etc. The default sort Most Recent lists the newest traces by start time in descending order. You can switch the sort to show the longest/shortest traces or those with the most/fewest spans.

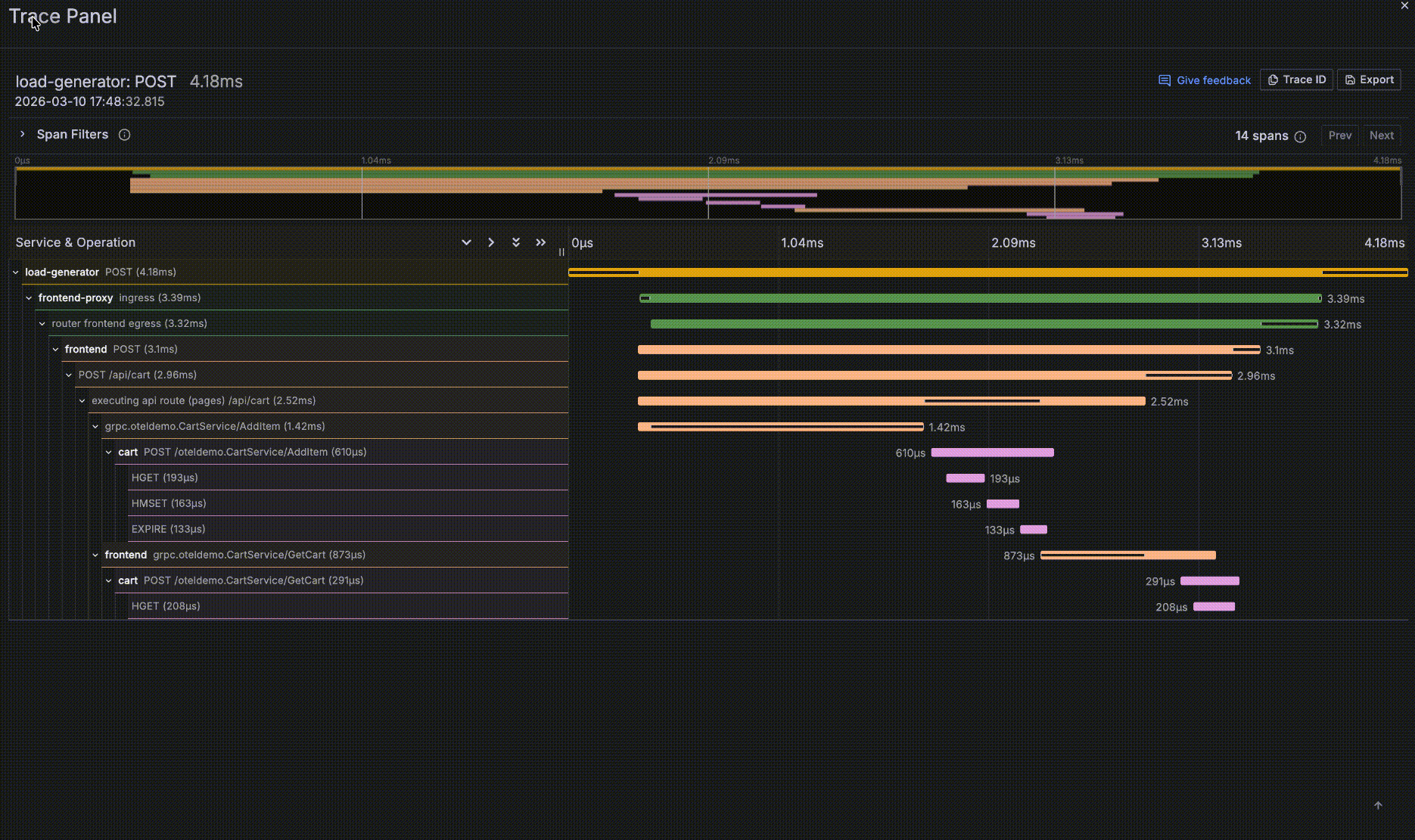

Clicking a trace opens a Trace Panel with rich details, where you can further analyze the spans in that trace:

1. View the trace's call-chain minimap and waterfall chart, including each span's execution window and call relationships.
2. Click a span to view its start time, duration, and contextual information including Span Attributes and Resource Attributes.
3. Click Span Filter to filter spans by Service Name, Span Name, Duration, Tags, etc.

Common filter examples

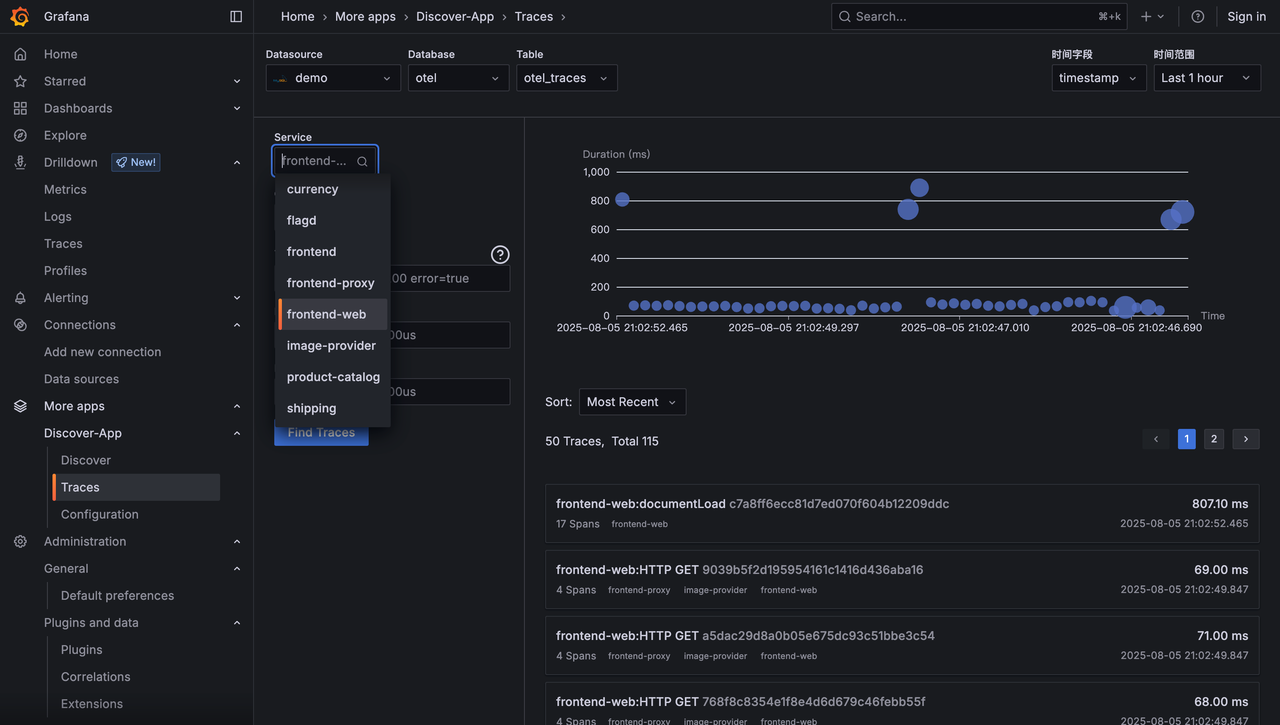

Filter by service

Service = frontend-web

Quickly view traces produced by the specified service.

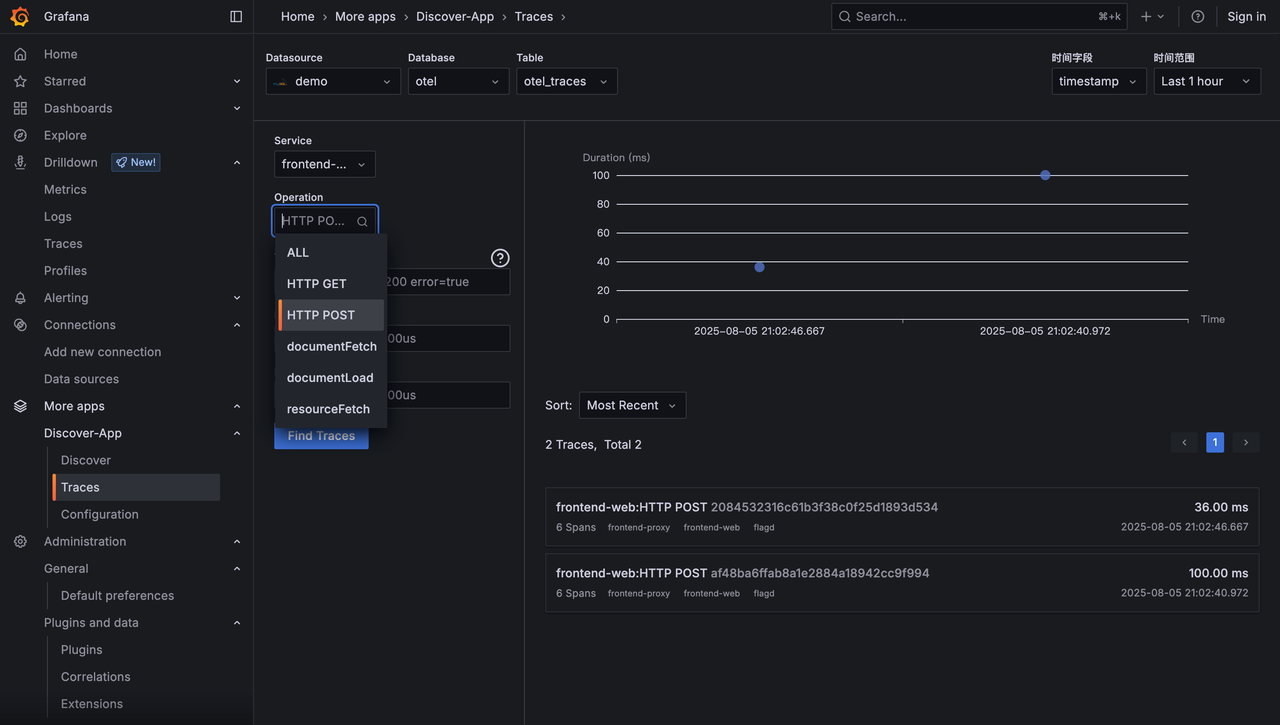

Filter by operation

Operation = HTTP POST

Useful for locating a specific endpoint or request type.

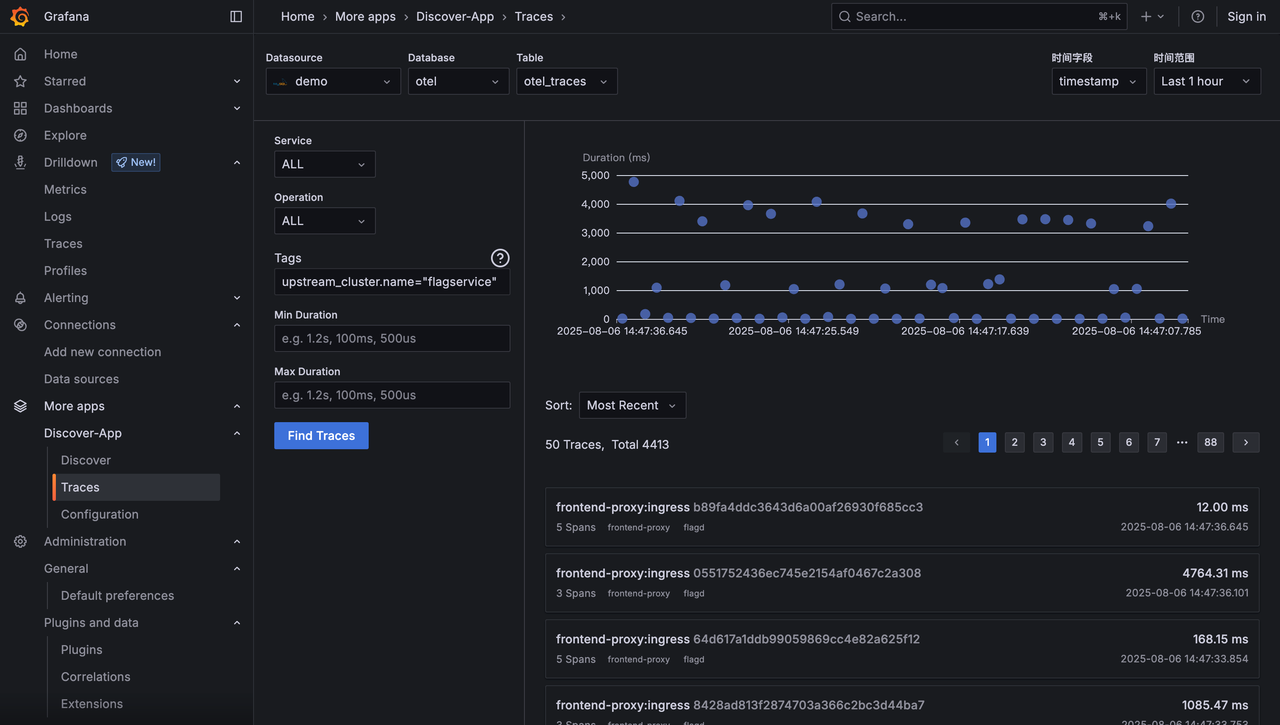

Filter by tags

upstream_cluster.name="flagservice"

Use logfmt key=value syntax to filter on span attributes.

Filter by duration

Min Duration = 100ms ``Max Duration = 1.2s

Quickly pinpoint slow requests.

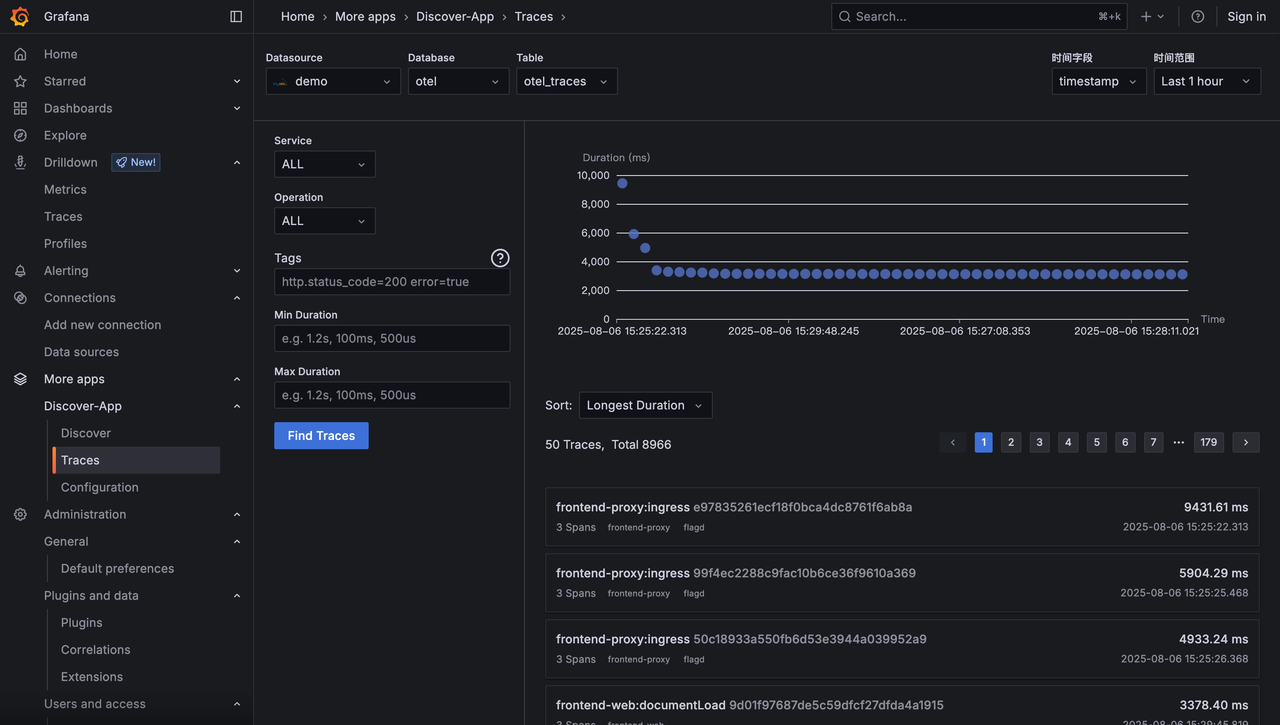

Sorting and pagination

The trace list supports several sort options:

• Most Recent
• Longest / Shortest Duration
• Most / Fewest Spans

It also supports paginated browsing.
