Custom Analyzer

A Custom Analyzer combines a character filter (char_filter), a tokenizer, and a token filter (token_filter) so that you can precisely define how text is split into searchable terms based on business needs. It overcomes the limitations of built-in analyzers and directly affects search relevance and the accuracy of data analysis.

Applicable Scenarios

Scenario	Recommended Combination
Multilingual mixed-text search	icu tokenizer + icu_normalizer filter
Phone number / code prefix matching	edge_ngram tokenizer
Splitting complex English text (camel case, hyphens, etc.)	standard tokenizer + word_delimiter filter
Auto-completion / input suggestions	edge_ngram tokenizer + lowercase filter
Exact match (preserve original term)	keyword tokenizer + lowercase / asciifolding filter

---

Core Components

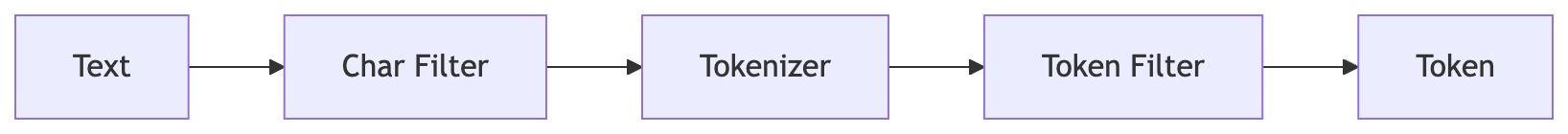

A custom analyzer consists of four kinds of objects, applied to the original text in order:

Original text ──► [char_filter] ──► [tokenizer] ──► [token_filter] ──► Terms

Component	Purpose	Count
char_filter	Pre-processes characters before tokenization (such as replacement and normalization)	0 ~ N
tokenizer	Splits text into terms	1
token_filter	Processes the resulting terms (such as lowercasing or ASCII folding)	0 ~ N
analyzer	Assembles the components above into a complete tokenization pipeline	1

---

Creating a Custom Analyzer

1. Character Filter (char_filter)

CREATE INVERTED INDEX CHAR_FILTER IF NOT EXISTS x_char_filter
PROPERTIES (
    "type" = "char_replace"
    -- See below for other parameters
);

Supported character filter types:

• char_replace: replaces specified characters with target characters before tokenization.

  • char_filter_pattern: list of characters to replace
  • char_filter_replacement: replacement character (default: space)

• icu_normalizer: pre-processes text using ICU normalization.

  • name: normalization form (default nfkc_cf). Options: nfc, nfkc, nfkc_cf, nfd, nfkd
  • mode: normalization mode (default compose). Options: compose, decompose
  • unicode_set_filter: specifies the character set to normalize (such as [a-z])

2. Tokenizer

CREATE INVERTED INDEX TOKENIZER IF NOT EXISTS x_tokenizer
PROPERTIES (
    "type" = "standard"
);

Supported tokenizer types:

Type	Description	Main Parameters
standard	Standard tokenization (follows Unicode text segmentation), suitable for most languages	None
ngram	Splits by N-grams	min_gram, max_gram, max_ngram_diff, token_chars
edge_ngram	Generates N-grams starting from the beginning of the word	min_gram, max_gram, token_chars
keyword	Outputs the entire text as a single term, often combined with token_filter	None
char_group	Splits by the given characters	tokenize_on_chars
basic	Simple English / digit / Chinese / Unicode tokenization	extra_chars
icu	ICU internationalized tokenization, supports complex scripts in multiple languages	None
ik_smart	IK smart Chinese tokenization, favoring complete words; available for custom analyzers since 4.1.5	None
ik_max_word	IK fine-grained Chinese tokenization, producing more potentially overlapping terms; available for custom analyzers since 4.1.5	None

Parameter descriptions:

• min_gram: minimum length (default 1)
• max_gram: maximum length (default 2)
• token_chars: character categories to keep (default: keep all). Options: letter, digit, whitespace, punctuation, symbol
• tokenize_on_chars: a character list or category. Categories support whitespace, letter, digit, punctuation, symbol, cjk
• extra_chars: additional ASCII characters to split on (such as []().)

Ngram Range Limits (Since 4.1.5)

Since 4.1.5, the ngram tokenizer supports max_ngram_diff to relax the previous limit of 1 on the difference between maximum and minimum gram lengths. For ordinary ngram tokenizers without a mode property, creation validates the following conditions:

Parameter	Default	Constraints
min_gram	1	Positive integer no greater than max_gram; at most 1024 for a new ngram tokenizer.
max_gram	2	Positive integer no less than min_gram; at most 1024 for a new ngram tokenizer.
max_ngram_diff	1	Integer from 0 through 255; must satisfy max_gram - min_gram <= max_ngram_diff. A value of 0 allows only fixed-length N-grams.

For example, min_gram=1 and max_gram=8 require max_ngram_diff of at least 7. Omitting it causes creation to fail with The difference between max_gram and min_gram in NGram Tokenizer must be less than or equal to: [ 1 ] but was [7]. See Example 5 for complete usage.

These limits and max_ngram_diff apply to ordinary ngram tokenizers without a mode property. Tokenizers that specify mode use separate validation and ignore these limits. edge_ngram does not accept this parameter; the phone-number and autocomplete examples keep their own min_gram and max_gram settings. Wider ranges produce more terms per input position. Size the range for your search requirements to avoid unnecessary index growth.

3. Token Filter

CREATE INVERTED INDEX TOKEN_FILTER IF NOT EXISTS x_token_filter
PROPERTIES (
    "type" = "word_delimiter"
);

Supported token filter types:

Type	Purpose
word_delimiter	Splits at non-alphanumeric characters and can perform normalization
ascii_folding	Maps non-ASCII characters to their ASCII equivalents
lowercase	Converts token text to lowercase
icu_normalizer	Processes tokens using ICU normalization

word_delimiter Details

Default behavior:

1. Uses non-alphanumeric characters as delimiters (for example: Super-Duper to Super, Duper)
2. Removes leading and trailing delimiters from a token (for example: XL---42+'Autocoder' to XL, 42, Autocoder)
3. Splits at case transitions (for example: PowerShot to Power, Shot)
4. Splits at the boundary between letters and digits (for example: XL500 to XL, 500)
5. Removes the English possessive 's (for example: Neil's to Neil)

Optional parameters:

Parameter	Default	Description
generate_number_parts	true	Whether to output the numeric parts
generate_word_parts	true	Whether to output the word parts
protected_words	None	Protected words that are not split
split_on_case_change	true	Whether to split at case changes
split_on_numerics	true	Whether to split at the boundary between letters and digits
stem_english_possessive	true	Whether to remove the English possessive 's
type_table	None	Custom character type mapping table

type_table supports the following mapping types:

• ALPHA (letter)
• ALPHANUM (alphanumeric)
• DIGIT (digit)
• LOWER (lowercase letter)
• SUBWORD_DELIM (non-alphanumeric delimiter)
• UPPER (uppercase letter)

Example: ["+ => ALPHA", "- => ALPHA"] treats + and - as letters so that they are not used as split points.

icu_normalizer Parameters

• name: normalization form (default nfkc_cf). Options: nfc, nfkc, nfkc_cf, nfd, nfkd
• unicode_set_filter: specifies the character set to normalize

4. Analyzer

Assembles the components above into a complete tokenization pipeline:

CREATE INVERTED INDEX ANALYZER IF NOT EXISTS x_analyzer
PROPERTIES (
    "tokenizer" = "x_tokenizer",            -- A single tokenizer
    "token_filter" = "x_filter1, x_filter2" -- One or more token_filters, executed in order
);

---

Using a Custom Analyzer in a Table

Reference a created custom analyzer through the analyzer field in the index PROPERTIES:

CREATE TABLE tbl (
    `a` bigint NOT NULL AUTO_INCREMENT(1),
    `ch` text NULL,
    INDEX idx_ch (`ch`) USING INVERTED PROPERTIES("analyzer" = "x_custom_analyzer", "support_phrase" = "true")
)
table_properties;

Notes:

1. A custom analyzer is set in the index PROPERTIES through analyzer.
2. The only property that can be used together with analyzer is support_phrase.

---

Multiple Analyzer Indexes on a Single Column

Doris supports creating multiple inverted indexes that use different tokenizers on the same column, so that the same data can be retrieved with different tokenization strategies.

Use Cases

• Multilingual support: use tokenizers for different languages on the same text column.
• Balancing search precision and recall: use a keyword tokenizer for exact matching and a standard tokenizer for fuzzy search.
• Auto-completion: use an edge_ngram tokenizer for prefix matching and a standard tokenizer for regular search.

Creating Multiple Indexes

-- 1. Create tokenizers with different tokenization strategies
CREATE INVERTED INDEX ANALYZER IF NOT EXISTS std_analyzer
PROPERTIES ("tokenizer" = "standard", "token_filter" = "lowercase");

CREATE INVERTED INDEX ANALYZER IF NOT EXISTS kw_analyzer
PROPERTIES ("tokenizer" = "keyword", "token_filter" = "lowercase");

CREATE INVERTED INDEX TOKENIZER IF NOT EXISTS edge_ngram_tokenizer
PROPERTIES (
    "type" = "edge_ngram",
    "min_gram" = "1",
    "max_gram" = "20",
    "token_chars" = "letter"
);

CREATE INVERTED INDEX ANALYZER IF NOT EXISTS ngram_analyzer
PROPERTIES ("tokenizer" = "edge_ngram_tokenizer", "token_filter" = "lowercase");

-- 2. Create multiple indexes on the same column
CREATE TABLE articles (
    id INT,
    content TEXT,
    -- Standard tokenizer for tokenized search
    INDEX idx_content_std (content) USING INVERTED
        PROPERTIES("analyzer" = "std_analyzer", "support_phrase" = "true"),
    -- Keyword tokenizer for exact matching
    INDEX idx_content_kw (content) USING INVERTED
        PROPERTIES("analyzer" = "kw_analyzer"),
    -- edge n-gram tokenizer for auto-completion
    INDEX idx_content_ngram (content) USING INVERTED
        PROPERTIES("analyzer" = "ngram_analyzer")
) ENGINE=OLAP
DUPLICATE KEY(id)
DISTRIBUTED BY HASH(id) BUCKETS 1
PROPERTIES ("replication_allocation" = "tag.location.default: 1");

Specifying an Analyzer at Query Time

Use the USING ANALYZER clause to specify which index to use:

-- Insert test data
INSERT INTO articles VALUES
    (1, 'hello world'),
    (2, 'hello'),
    (3, 'world'),
    (4, 'hello world test');

-- Tokenized search: matches rows containing the term 'hello'
-- Returns: 1, 2, 4
SELECT id FROM articles WHERE content MATCH 'hello' USING ANALYZER std_analyzer ORDER BY id;

-- Exact match: matches only the exact 'hello' string
-- Returns: 2
SELECT id FROM articles WHERE content MATCH 'hello' USING ANALYZER kw_analyzer ORDER BY id;

-- Use edge n-gram for prefix matching
-- Returns: 1, 2, 4 (all rows starting with 'hel')
SELECT id FROM articles WHERE content MATCH 'hel' USING ANALYZER ngram_analyzer ORDER BY id;

You can also use built-in tokenizers directly:

SELECT * FROM articles WHERE content MATCH 'hello' USING ANALYZER standard;
SELECT * FROM articles WHERE content MATCH 'hello' USING ANALYZER none;
SELECT * FROM articles WHERE content MATCH 'Hello' USING ANALYZER chinese;

Adding an Index to an Existing Table

-- Add a new index that uses a different tokenizer
ALTER TABLE articles ADD INDEX idx_content_chinese (content)
USING INVERTED PROPERTIES("parser" = "chinese");

-- Wait for the schema change to complete
SHOW ALTER TABLE COLUMN WHERE TableName='articles';

Building an Index

After adding an index, you must build the index for existing data:

-- Build a specific index (non-cloud mode)
BUILD INDEX idx_content_chinese ON articles;

-- Build all indexes (cloud mode)
BUILD INDEX ON articles;

-- Check the build progress
SHOW BUILD INDEX WHERE TableName='articles';

Key Notes

1. Tokenizer identity: two tokenizers with the same tokenizer and token_filter configuration are considered identical. You cannot create multiple indexes on the same column that share the same tokenizer identity.
2. Index selection behavior:
   • When USING ANALYZER is specified, the index for the specified tokenizer is used if it exists and has been built.
   • If the index is not built, the query falls back to the non-index path (results are correct, but performance is slower).
   • When USING ANALYZER is not specified, any available index may be used.
3. Performance considerations:
   • Each additional index increases storage space and write overhead.
   • Choose tokenizers based on your actual query patterns.
   • If your query patterns are predictable, consider using fewer indexes.

---

Management and Maintenance

View

SHOW INVERTED INDEX TOKENIZER;
SHOW INVERTED INDEX TOKEN_FILTER;
SHOW INVERTED INDEX ANALYZER;

Delete

DROP INVERTED INDEX TOKENIZER IF EXISTS x_tokenizer;
DROP INVERTED INDEX TOKEN_FILTER IF EXISTS x_token_filter;
DROP INVERTED INDEX ANALYZER IF EXISTS x_analyzer;

---

Complete Examples

Example 1: Phone Number Prefix Matching

Use edge_ngram to generate all prefix fragments of a phone number, enabling search-as-you-type.

CREATE INVERTED INDEX TOKENIZER IF NOT EXISTS edge_ngram_phone_number_tokenizer
PROPERTIES
(
    "type" = "edge_ngram",
    "min_gram" = "3",
    "max_gram" = "10",
    "token_chars" = "digit"
);

CREATE INVERTED INDEX ANALYZER IF NOT EXISTS edge_ngram_phone_number
PROPERTIES
(
    "tokenizer" = "edge_ngram_phone_number_tokenizer"
);

CREATE TABLE tbl (
    `a` bigint NOT NULL AUTO_INCREMENT(1),
    `ch` text NULL,
    INDEX idx_ch (`ch`) USING INVERTED PROPERTIES("support_phrase" = "true", "analyzer" = "edge_ngram_phone_number")
) ENGINE=OLAP
DUPLICATE KEY(`a`)
DISTRIBUTED BY RANDOM BUCKETS 1
PROPERTIES (
    "replication_allocation" = "tag.location.default: 1"
);

SELECT tokenize('13891972631', '"analyzer"="edge_ngram_phone_number"');

Result:

[
    {"token":"138"},
    {"token":"1389"},
    {"token":"13891"},
    {"token":"138919"},
    {"token":"1389197"},
    {"token":"13891972"},
    {"token":"138919726"},
    {"token":"1389197263"}
]

Example 2: Fine-Grained Tokenization for Complex English Text

Use the standard tokenizer together with word_delimiter for finer-grained tokenization, plus case normalization and ASCII folding.

CREATE INVERTED INDEX TOKEN_FILTER IF NOT EXISTS word_splitter
PROPERTIES
(
    "type" = "word_delimiter",
    "split_on_numerics" = "false",
    "split_on_case_change" = "false"
);

CREATE INVERTED INDEX ANALYZER IF NOT EXISTS lowercase_delimited
PROPERTIES
(
    "tokenizer" = "standard",
    "token_filter" = "asciifolding, word_splitter, lowercase"
);

CREATE TABLE tbl (
    `a` bigint NOT NULL AUTO_INCREMENT(1),
    `ch` text NULL,
    INDEX idx_ch (`ch`) USING INVERTED PROPERTIES("support_phrase" = "true", "analyzer" = "lowercase_delimited")
) ENGINE=OLAP
DUPLICATE KEY(`a`)
DISTRIBUTED BY RANDOM BUCKETS 1
PROPERTIES (
    "replication_allocation" = "tag.location.default: 1"
);

SELECT tokenize('The server at IP 192.168.1.15 sent a confirmation to user_123@example.com, requiring a quickResponse before the deadline.', '"analyzer"="lowercase_delimited"');

Result:

[
    {"token":"the"},
    {"token":"server"},
    {"token":"at"},
    {"token":"ip"},
    {"token":"192"},
    {"token":"168"},
    {"token":"1"},
    {"token":"15"},
    {"token":"sent"},
    {"token":"a"},
    {"token":"confirmation"},
    {"token":"to"},
    {"token":"user"},
    {"token":"123"},
    {"token":"example"},
    {"token":"com"},
    {"token":"requiring"},
    {"token":"a"},
    {"token":"quickresponse"},
    {"token":"before"},
    {"token":"the"},
    {"token":"deadline"}
]

Example 3: Exact Match with Original Term Preserved

Use the keyword tokenizer to keep the entire text intact, then apply lowercase and asciifolding for normalization. This is commonly used for case-insensitive exact matching of strings.

CREATE INVERTED INDEX ANALYZER IF NOT EXISTS keyword_lowercase
PROPERTIES
(
    "tokenizer" = "keyword",
    "token_filter" = "asciifolding, lowercase"
);

CREATE TABLE tbl (
    `a` bigint NOT NULL AUTO_INCREMENT(1),
    `ch` text NULL,
    INDEX idx_ch (`ch`) USING INVERTED PROPERTIES("support_phrase" = "true", "analyzer" = "keyword_lowercase")
) ENGINE=OLAP
DUPLICATE KEY(`a`)
DISTRIBUTED BY RANDOM BUCKETS 1
PROPERTIES (
    "replication_allocation" = "tag.location.default: 1"
);

SELECT tokenize('hÉllo World', '"analyzer"="keyword_lowercase"');

Result:

[
    {"token":"hello world"}
]

Example 4: IK Smart and Fine-Grained Chinese Tokenization (Since 4.1.5)

Since 4.1.5, custom analyzers can reference the built-in ik_smart and ik_max_word tokenizers directly, or use a named tokenizer with either type before combining it with character and token filters. Neither IK tokenizer has additional tokenizer parameters. Both use dictionaries in the ik directory under the BE configuration inverted_index_dict_path. Every BE involved in tokenization and index construction must support these components and be able to read the dictionaries.

The examples below demonstrate direct references and named tokenizers. Creating these components requires global ADMIN. Creating tables, loading data, and querying also require the corresponding privileges on the target database and tables.

CREATE INVERTED INDEX ANALYZER IF NOT EXISTS cn_ik_smart
PROPERTIES ("tokenizer" = "ik_smart");

CREATE INVERTED INDEX TOKENIZER IF NOT EXISTS cn_ik_max_tokenizer
PROPERTIES ("type" = "ik_max_word");

CREATE INVERTED INDEX ANALYZER IF NOT EXISTS cn_ik_max
PROPERTIES ("tokenizer" = "cn_ik_max_tokenizer");

Successful creation returns Query OK. After the components synchronize to the BEs, compare their output with TOKENIZE. The following results use the built-in dictionaries; changing the dictionaries can change the tokens.

SELECT TOKENIZE('中华人民共和国', '"analyzer"="cn_ik_smart"');

[{"token":"中华人民共和国"}]

SELECT TOKENIZE('中华人民共和国', '"analyzer"="cn_ik_max"');

[
    {"token":"中华人民共和国"},
    {"token":"中华人民"},
    {"token":"中华"},
    {"token":"华人"},
    {"token":"人民共和国"},
    {"token":"人民"},
    {"token":"共和国"},
    {"token":"共和"},
    {"token":"国"}
]

Use the analyzer in a table's inverted index:

CREATE TABLE ik_articles (
    id INT,
    content STRING,
    INDEX idx_content(content) USING INVERTED
        PROPERTIES("analyzer" = "cn_ik_smart")
)
DUPLICATE KEY(id)
DISTRIBUTED BY HASH(id) BUCKETS 1
PROPERTIES ("replication_allocation" = "tag.location.default: 1");

INSERT INTO ik_articles VALUES (1, '中华人民共和国');

SELECT id FROM ik_articles
WHERE content MATCH '中华人民共和国' USING ANALYZER cn_ik_smart
ORDER BY id;

+----+
| id |
+----+
|  1 |
+----+

Use ik_smart when searches should preserve complete Chinese words, and ik_max_word when searches need more subword matches. Add token filters through the analyzer's token_filter property when further token processing is needed.

Example 5: Expand the Ngram Length Range (Since 4.1.5)

This tokenizer generates N-grams of lengths 1 through 8 by explicitly setting max_ngram_diff=7:

CREATE INVERTED INDEX TOKENIZER IF NOT EXISTS ngram_1_8_tokenizer
PROPERTIES (
    "type" = "ngram",
    "min_gram" = "1",
    "max_gram" = "8",
    "max_ngram_diff" = "7"
);

CREATE INVERTED INDEX ANALYZER IF NOT EXISTS ngram_1_8_analyzer
PROPERTIES ("tokenizer" = "ngram_1_8_tokenizer");

After successful creation and synchronization to the BEs, run:

SELECT TOKENIZE('abcdefgh', '"analyzer"="ngram_1_8_analyzer"');

[
    {"token":"a"}, {"token":"ab"}, {"token":"abc"}, {"token":"abcd"},
    {"token":"abcde"}, {"token":"abcdef"}, {"token":"abcdefg"}, {"token":"abcdefgh"},
    {"token":"b"}, {"token":"bc"}, {"token":"bcd"}, {"token":"bcde"},
    {"token":"bcdef"}, {"token":"bcdefg"}, {"token":"bcdefgh"},
    {"token":"c"}, {"token":"cd"}, {"token":"cde"}, {"token":"cdef"},
    {"token":"cdefg"}, {"token":"cdefgh"},
    {"token":"d"}, {"token":"de"}, {"token":"def"}, {"token":"defg"}, {"token":"defgh"},
    {"token":"e"}, {"token":"ef"}, {"token":"efg"}, {"token":"efgh"},
    {"token":"f"}, {"token":"fg"}, {"token":"fgh"},
    {"token":"g"}, {"token":"gh"}, {"token":"h"}
]

---

Limitations

1. The type and parameters in tokenizer and token_filter can only use currently supported tokenizers and token filters; otherwise, table creation fails.
2. An analyzer can be dropped only when no table is using it.
3. A tokenizer or token_filter can be dropped only when no analyzer is using it.
4. Custom analyzer DDL is synchronized to the BE 10 seconds after execution; subsequent imports do not produce errors.

---

Notes

1. Nesting multiple components in a custom analyzer may degrade tokenization performance.
2. The select tokenize tokenization function supports custom analyzers and can be used to debug tokenization results.
3. Only one of the predefined built_in_analyzer and a custom analyzer can exist on the same index.
