AWS 认证和鉴权

Doris 支持两种 AWS 认证、鉴权方式访问 AWS 服务，IAM User和Assumed Role，本文介绍如何配置这两种认证、鉴权方式的 AWS 安全凭证并通过安全凭证使用 Doris 相关的功能来访问 AWS 的服务资源。

认证方式介绍​

IAM User 认证鉴权​

Doris 支持通过 配置AWS IAM User的方式来实现对外部数据源的访问（即access_key和secret_key密钥的方式），详细的配置步骤如下 (更详细的介绍请参见 AWS 官网文档 IAM users)：

Step1 登录 AWS 控制台创建 IAM User 并配置 IAM 策略​

  1. 登录 AWS控制台 选择 Create user 按钮

  1. 填写好 IAM user 名字后，在Set pemissions部分选择直接附加策略

  1. 在策略编辑器中填入对应的 AWS 资源策略，下文以访问 S3 Bucket 资源为例列出了读/写策略的常见模板

S3 Bucket 读策略模版，适用于只需读取和列出 bucket 中对象的 Doris 功能，比如 S3 Load，TVF，External Catalog 等

注意:

  1. 替换对应的 bucket name 和 prefix 路径

  2. 不要添加多余的“/”分割符

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
              "s3:GetObject",
              "s3:GetObjectVersion",
            ],
            "Resource": "arn:aws:s3:::<your-bucket>/your-prefix/*"
        },
        {
            "Effect": "Allow",
            "Action": [
                "s3:ListBucket",
                "s3:GetBucketLocation"
            ],
            "Resource": "arn:aws:s3:::<your-bucket>"
        }
    ]
}

S3 Bucket 写策略模板，适用于需要读取、列出和写入 bucket 对象的 Doris 功能，比如 Export，Storage Vault，Resource，Repository 等

注意:

  1. 替换对应的 bucket name 和 prefix 路径

  2. 不要添加多余的“/”分割符

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
              "s3:PutObject",
              "s3:GetObject",
              "s3:GetObjectVersion",
              "s3:DeleteObject",
              "s3:DeleteObjectVersion",
              "s3:AbortMultipartUpload",
              "s3:ListMultipartUploadParts"
            ],
            "Resource": "arn:aws:s3:::<your-bucket>/<your-prefix>/*"
        },
        {
            "Effect": "Allow",
            "Action": [
                "s3:ListBucket",
                "s3:GetBucketLocation",
                "s3:GetBucketVersioning",
                "s3:GetLifecycleConfiguration"
            ],
            "Resource": "arn:aws:s3:::<your-bucket>"
        }
    ]
}
  1. 创建 IAM User 成功后，创建 access/secret key 密钥

Step2 通过访问密钥和 SQL 语句使用 Doris 对应功能​

完成上述 Step1 中的所有配置后，可获得access_key和secret_key访问密钥，通过访问密钥可以使用 Doris 对应的功能，具体例子如下：

S3 Load

  LOAD LABEL s3_load_2022_04_01
  (
      DATA INFILE("s3://your_bucket_name/s3load_example.csv")
      INTO TABLE test_s3load
      COLUMNS TERMINATED BY ","
      FORMAT AS "CSV"
      (user_id, name, age)
  )
  WITH S3
  (
      "provider" = "S3",
      "s3.endpoint" = "s3.us-east-1.amazonaws.com",
      "s3.region" = "us-east-1",
      "s3.access_key" = "<your-access-key>",
      "s3.secret_key" = "<your-secrety-key>"
  )
  PROPERTIES
  (
      "timeout" = "3600"
  );

TVF

  SELECT * FROM S3 (
      'uri' = 's3://your_bucket/path/to/tvf_test/test.parquet',
      'format' = 'parquet',
      's3.endpoint' = 's3.us-east-1.amazonaws.com',
      's3.region' = 'us-east-1',
      "s3.access_key" = "<your-access-key>",
      "s3.secret_key"="<your-secret-key>"
  )

External Catalog

  CREATE CATALOG iceberg_catalog PROPERTIES (
      'type' = 'iceberg',
      'iceberg.catalog.type' = 'hadoop',
      'warehouse' = 's3://your_bucket/dir/key',
      's3.endpoint' = 's3.us-east-1.amazonaws.com',
      's3.region' = 'us-east-1',
      "s3.access_key" = "<your-access-key>",
      "s3.secret_key"="<your-secret-key>"
  );

Storage Vault

CREATE STORAGE VAULT IF NOT EXISTS s3_demo_vault
PROPERTIES (
    "type" = "S3",
    "s3.endpoint" = "s3.us-east-1.amazonaws.com",
    "s3.region" = "us-east-1",
    "s3.bucket" = "<your-bucket>",
    "s3.access_key" = "<your-access-key>",
    "s3.secret_key"="<your-secret-key>",
    "s3.root.path" = "s3_demo_vault_prefix",
    "provider" = "S3",
    "use_path_style" = "false"
);

Export

EXPORT TABLE s3_test TO "s3://your_bucket/a/b/c"
PROPERTIES (
    "column_separator"="\\x07",
    "line_delimiter" = "\\x07"
) WITH S3 (
    "s3.endpoint" = "s3.us-east-1.amazonaws.com",
    "s3.region" = "us-east-1",
    "s3.access_key" = "<your-access-key>",
    "s3.secret_key"="<your-secret-key>",
)

Repository

CREATE REPOSITORY `s3_repo`
WITH S3
ON LOCATION "s3://your_bucket/s3_repo"
PROPERTIES
(
    "s3.endpoint" = "s3.us-east-1.amazonaws.com",
    "s3.region" = "us-east-1",
    "s3.access_key" = "<your-access-key>",
    "s3.secret_key"="<your-secret-key>"
);

Resource

CREATE RESOURCE "remote_s3"
PROPERTIES
(
    "s3.endpoint" = "s3.us-east-1.amazonaws.com",
    "s3.region" = "us-east-1",
    "s3.bucket" = "<your-bucket>",
    "s3.access_key" = "<your-access-key>",
    "s3.secret_key"="<your-secret-key>"
);

您可以在不同业务逻辑里指定不同的 IAM User 的 access_key 和 secret_key，从而实现外部数据的访问控制。

Assumed Role 认证鉴权​

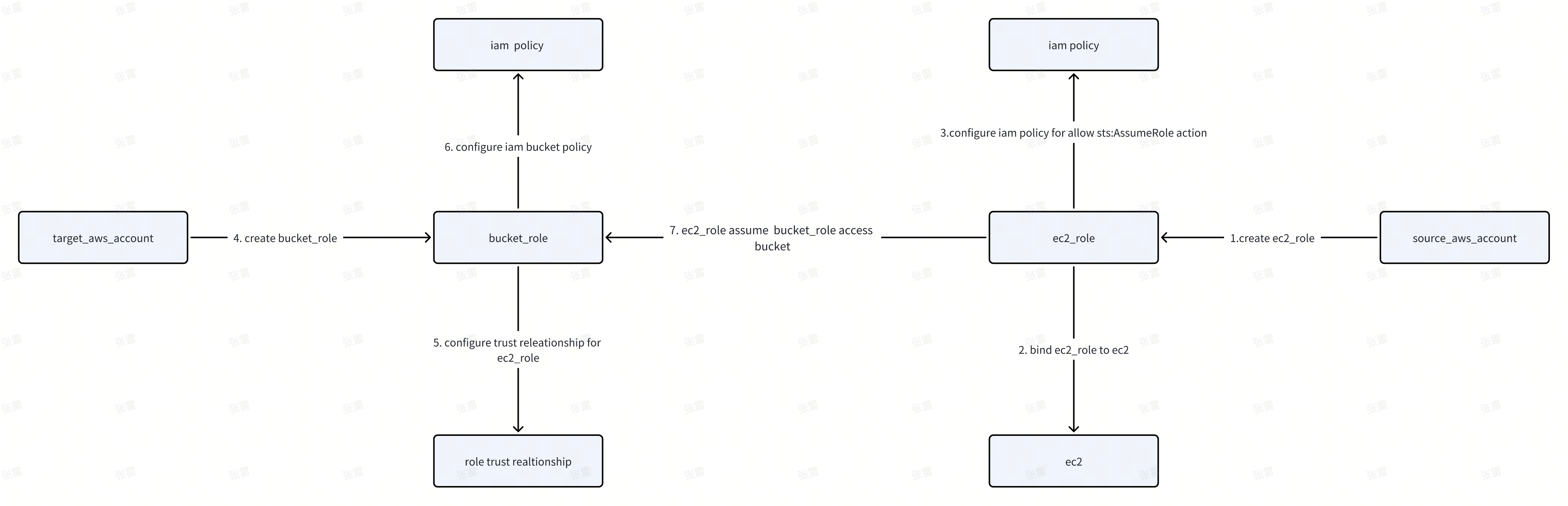

Assumed Role 支持通过担任 AWS IAM Role 来实现对外部数据源的访问认证和鉴权 (详细的介绍请参见 AWS 官网文档 代入角色)，下图列出了 Assumed Role 所需要配置的简要流程：

名词介绍：

源账户(Source Account): 发起 Assume Role 的 AWS 账户 (本例中是 Doris FE/BE EC2 机器所属账户);

目标账户(Target Account): 拥有目标 S3 Bucket 的 AWS 账户;

ec2_role: 源账户创建的 Role，并且需要绑定到每一个部署 Doris FE/BE 部署 EC2 机器上;

bucket_role: 目标账户创建的 Role，并且需要关联目标 bucket 权限;

注意:

  1. 源账户和目标账户可以是同一个 AWS 账户;
  2. 请确保所有 Doris FE/BE 部署所在的 EC2 机器都绑定到了ec_role上，尤其是扩容的时候。

操作演示 Demo 如下：

AWS IAM Role

更详细的配置步骤如下：

Step1 准备工作​

  1. 请确保源账户创建了一个ec2_role，Doris FE/BE 部署的 EC2 机器都绑定到了新创建的ec2_role;

  2. 请确保目标账户创建了一个bucket_role和对应的 bucket;

EC2 机器绑定ec2_role成功后， role_arn查询如下图所示：

Step2 配置源账户 IAM 角色 ( EC2 实例关联角色) 权限策略​

  1. 登录 AWS IAM 控制台，在左侧导航栏选择 Access management > Roles;
  2. 找到 EC2 实例关联角色，单击角色名称；
  3. 在角色详情页的 Permissions 区域，单击 Add permissions 并选择 Create inline policy；
  4. 在 Specify permissions 步骤，单击 JSON 页签，然后填入如下策略，最后，单击 Review policy；

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": ["sts:AssumeRole"],
            "Resource": "*"
        }
    ]
}

Step3 配置目标账户 IAM 角色信任策略和权限策略​

  1. 登录 AWS IAM 控制台，在左侧导航栏选择 Access management > Roles 找到 Assumed Target Role，单击角色名称 在角色详情页上;
  2. 单击 Trust relationships 页签，然后在 Trust relationships 页签上单击 Edit trust policy。在 Edit trust policy 页面中填入如下 JSON。最后，单击 Update policy(需要把下面策略中的 <ec2_iam_role_arn> 替换为 EC2 实例关联角色的 ARN);

注意：Condition 部分中的 ExternalId 是可选的字符串配置，用于区分需要使用多个源用户 assume 同一个 role 的情况，如果配置了请在对应 doris sql 语句中填入该配置，关于 ExternalId 的详细介绍，请参照aws 官方文档

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "AWS": "<ec2_iam_role_arn>"
            },
            "Action": "sts:AssumeRole",
            "Condition": {
                "StringEquals": {
                    "sts:ExternalId": "1001"
                }
            }
        }
    ]
}
  1. 在角色详情页的 Permissions 区域，单击 Add permissions 并选择 Create inline policy,在 Specify permissions 步骤，单击 JSON 页签，输入如下 JSON 策略配置; 最后，单击 Review policy;

S3 Bucket 读策略模版，适用于只需读取和 List bucket 中对象的 Doris 功能，比如 S3 Load，TVF，External Catalog 等

注意:

  1. 替换对应的 bucket name 和 prefix 路径

  2. 不要添加多余的“/”分割符

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
              "s3:GetObject",
              "s3:GetObjectVersion"
            ],
            "Resource": "arn:aws:s3:::<bucket>/<prefix>/*"
        },
        {
            "Effect": "Allow",
            "Action": [
                "s3:ListBucket",
                "s3:GetBucketLocation"
            ],
            "Resource": "arn:aws:s3:::<bucket>",
        }
    ]
}

S3 Bucket 写策略模板，适用于需要往 bucket 中读取和写入对象的 Doris 功能，比如 Export，Storage Vault，Resource，Repository 等

注意:

  1. 替换对应的 bucket name 和 prefix 路径

  2. 不要添加多余的“/”分割符

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
              "s3:PutObject",
              "s3:GetObject",
              "s3:GetObjectVersion",
              "s3:DeleteObject",
              "s3:DeleteObjectVersion",
              "s3:AbortMultipartUpload",
              "s3:ListMultipartUploadParts"
            ],
            "Resource": "arn:aws:s3:::<bucket>/<prefix>/*"
        },
        {
            "Effect": "Allow",
            "Action": [
                "s3:ListBucket",
                "s3:GetBucketLocation"
            ],
            "Resource": "arn:aws:s3:::<bucket>"
        }
    ]
}

Step4 通过role_arn和external_id字段使用 Doris 对应 SQL 功能​

通过上述配置步骤完成 assume role 需要的权限配置后，可得到一个目标账户的role_arn信息和external_id (如有)，

接下来分别介绍如何通过arn_role和external_id字段使用 Doris 对应功能的 sql 语法，主要关注如下两个字段：

"s3.role_arn" = "<your-target-role-arn>",
"s3.external_id" = "<your-external-id>"      -- 可选参数

S3 Load​

  LOAD LABEL s3_load_2022_04_01
  (
      DATA INFILE("s3://your_bucket_name/s3load_example.csv")
      INTO TABLE test_s3load
      COLUMNS TERMINATED BY ","
      FORMAT AS "CSV"
      (user_id, name, age)
  )
  WITH S3
  (
      "provider" = "S3",
      "s3.endpoint" = "s3.us-east-1.amazonaws.com",
      "s3.region" = "us-east-1",
      "s3.role_arn" = "<your-target-role-arn>",
      "s3.external_id" = "<your-external-id>"      -- 可选参数
  )
  PROPERTIES
  (
      "timeout" = "3600"
  );

TVF

  SELECT * FROM S3 (
      "uri" = "s3://your_bucket/path/to/tvf_test/test.parquet",
      "format" = "parquet",
      "s3.endpoint" = "s3.us-east-1.amazonaws.com",
      "s3.region" = "us-east-1",
      "s3.role_arn" = "<your-target-role-arn>",
      "s3.external_id" = "<your-external-id>"      -- 可选参数
  )

External Catalog

  CREATE CATALOG iceberg_catalog PROPERTIES (
      "type" = "iceberg",
      "iceberg.catalog.type" = "hadoop",
      "warehouse" = "s3://your_bucket/dir/key",
      "s3.endpoint" = "s3.us-east-1.amazonaws.com",
      "s3.region" = "us-east-1",
      "s3.role_arn" = "<your-target-role-arn>",
      "s3.external_id" = "<your-external-id>"      -- 可选参数
  );

Storage Vault

CREATE STORAGE VAULT IF NOT EXISTS s3_demo_vault
PROPERTIES (
    "type" = "S3",
    "s3.endpoint" = "s3.us-east-1.amazonaws.com",
    "s3.region" = "us-east-1",
    "s3.bucket" = "<your-bucket>",
    "s3.role_arn" = "<your-target-role-arn>",
    "s3.external_id" = "<your-external-id>",            -- 可选参数
    "s3.root.path" = "s3_demo_vault_prefix",
    "provider" = "S3",
    "use_path_style" = "false"
);

Export

EXPORT TABLE s3_test TO "s3://your_bucket/a/b/c"
PROPERTIES (
    "column_separator"="\\x07",
    "line_delimiter" = "\\x07"
) WITH S3 (
    "s3.endpoint" = "s3.us-east-1.amazonaws.com",
    "s3.region" = "us-east-1",
    "s3.role_arn" = "<your-target-role-arn>",
    "s3.external_id" = "<your-external-id>"
)

Repository

CREATE REPOSITORY `s3_repo`
WITH S3
ON LOCATION "s3://your_bucket/s3_repo"
PROPERTIES
(
    "s3.endpoint" = "s3.us-east-1.amazonaws.com",
    "s3.region" = "us-east-1",
    "s3.role_arn" = "<your-target-role-arn>",
    "s3.external_id" = "<your-external-id>"
);

Resource

CREATE RESOURCE "remote_s3"
PROPERTIES
(
    "s3.endpoint" = "s3.us-east-1.amazonaws.com",
    "s3.region" = "us-east-1",
    "s3.bucket" = "<your-bucket>",
    "s3.role_arn" = "<your-target-role-arn>",
    "s3.external_id" = "<your-external-id>"
);
